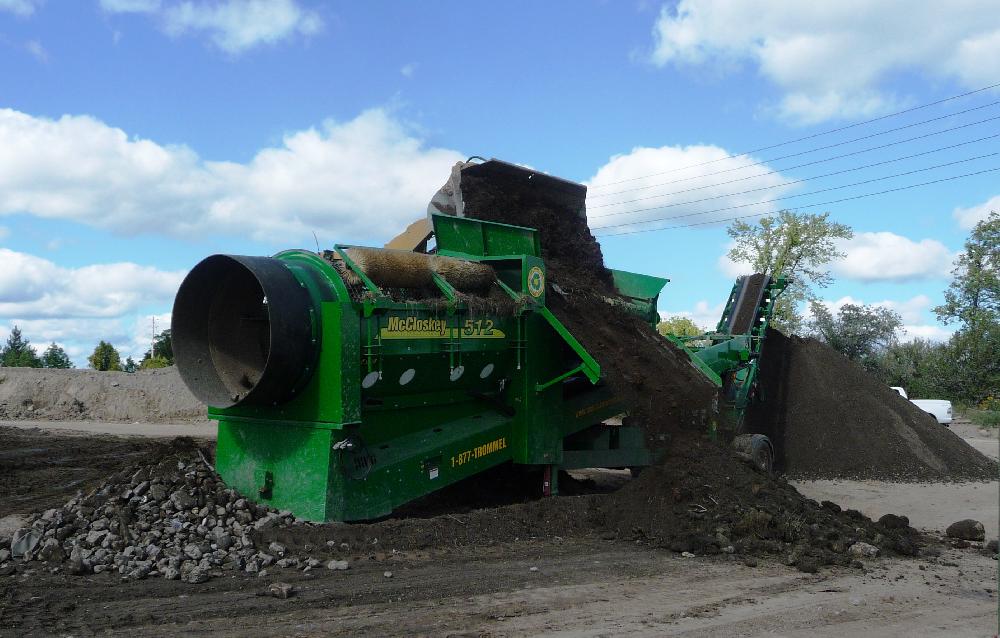

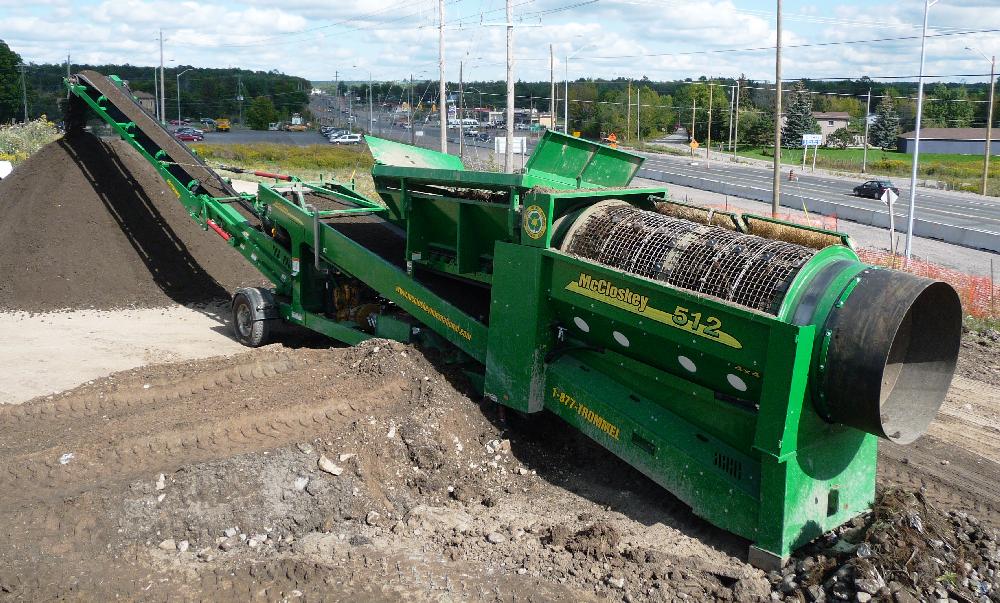

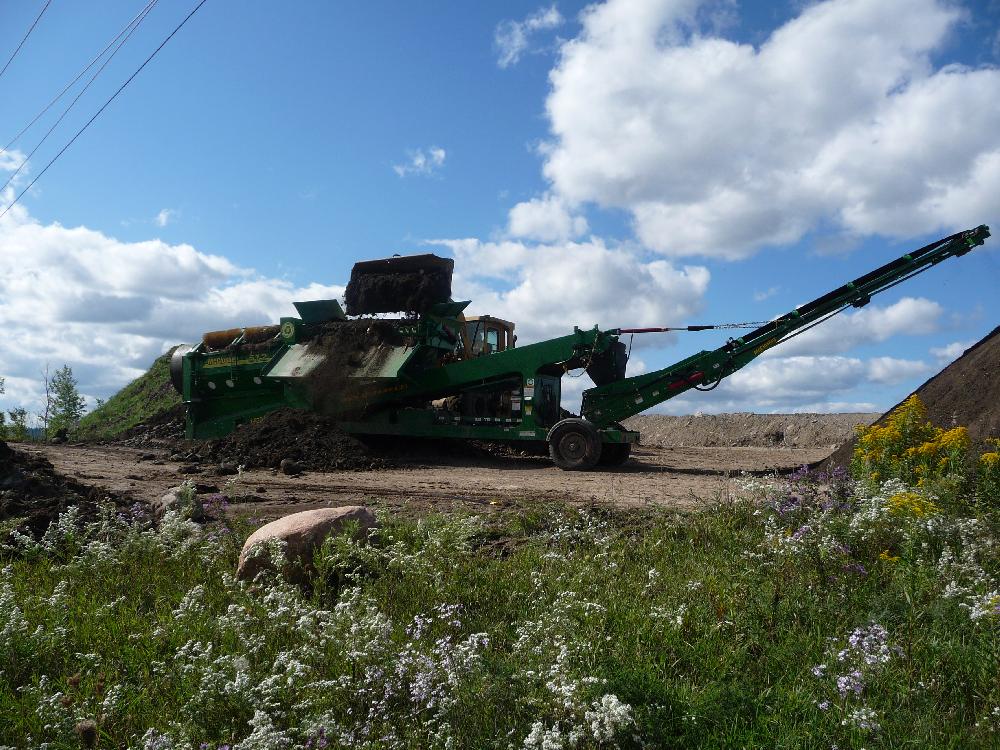

512R TROMMEL
The 512R Trommel provides McCloskey International’s customers with the functionality of our highly successful screener line-up with our patented radial conveyor. The 512 trommels are best suited for mid-size operations requiring portability and proven screening performance.
Available in diesel and electric the 512R’s radial conveyor delivers more efficient stockpiling of material. The environmentally friendly electric model reduces costs, and is perfect where environmental, legislative, or noise constraints are present.
As the top selling mid-size portable trommel in North America, the 512 offers a combination of high production rates, versatility, ease of use and unrivalled strength that has ensured this screener’s popularity with top soil producers, contractors, and landscape supply operators.
Features
Electric model available
Wheeled or Tracked mobility
Lifted bars for aggressive screening
Remote control radial conveyor
Large hopper capacity
Hydraulic tipping guard option available
Ground level adjustable brushes to keep the screen clean
Fast set up
Specifications
| Engine* | 75 kW (100 HP) |
| Drum Size |
1.52m (5') x 3.66m (12') |
| Screening Area |
11.8m² (127m²) |
| Hopper Capacity |
3.4m³ (4.5yd³) |
| Fine Conveyor Belt Width |
900mm (36") |
| Radial Stockpile Height |
3.92m (12'-10.5") |
| Radial Conveyor Belt Width |
800mm (32") |
