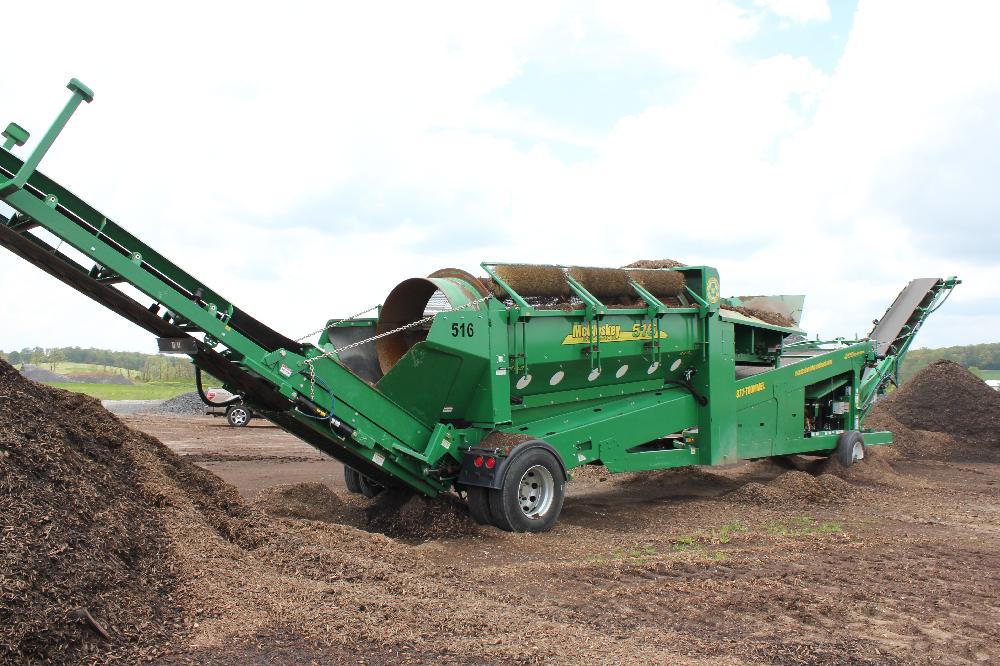

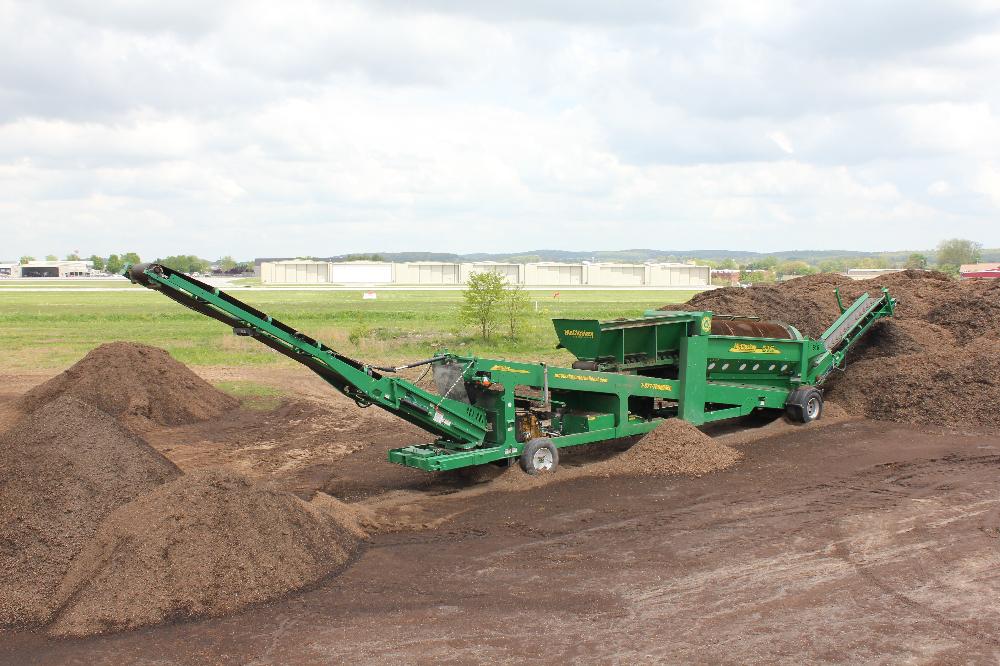

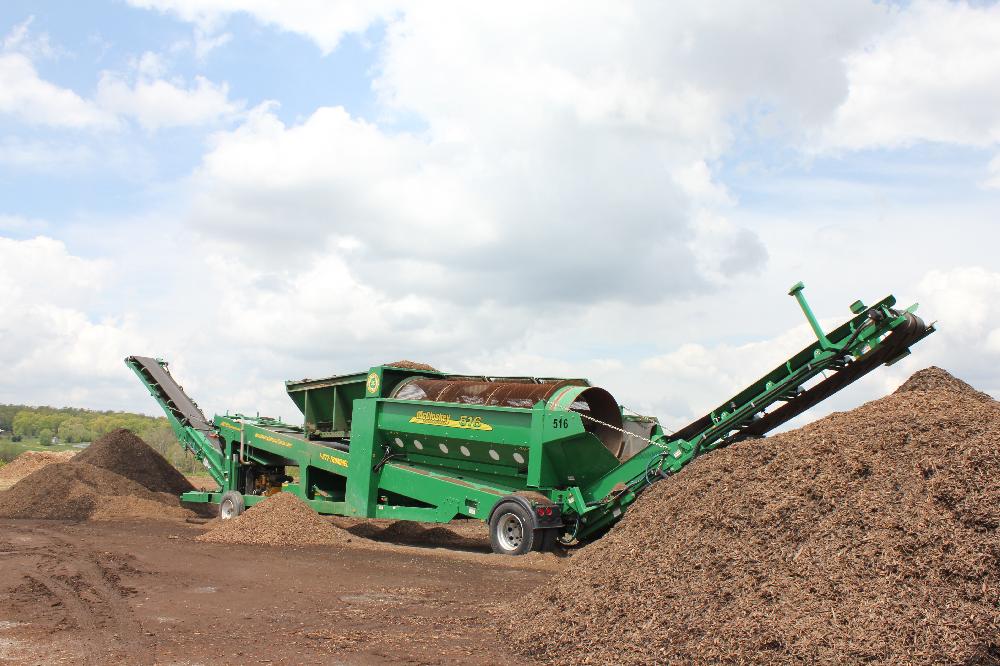

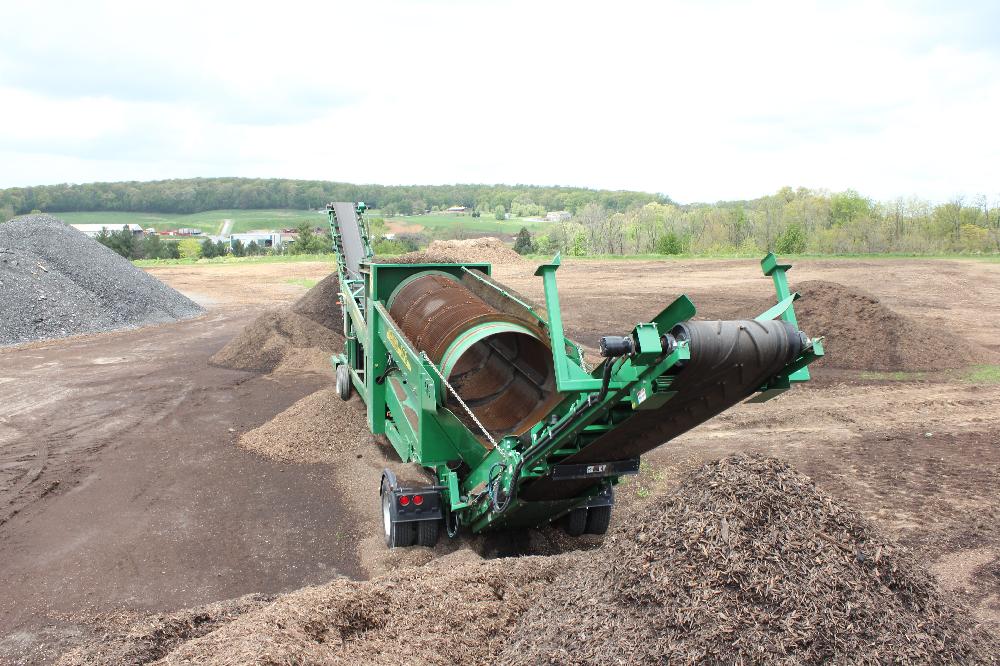

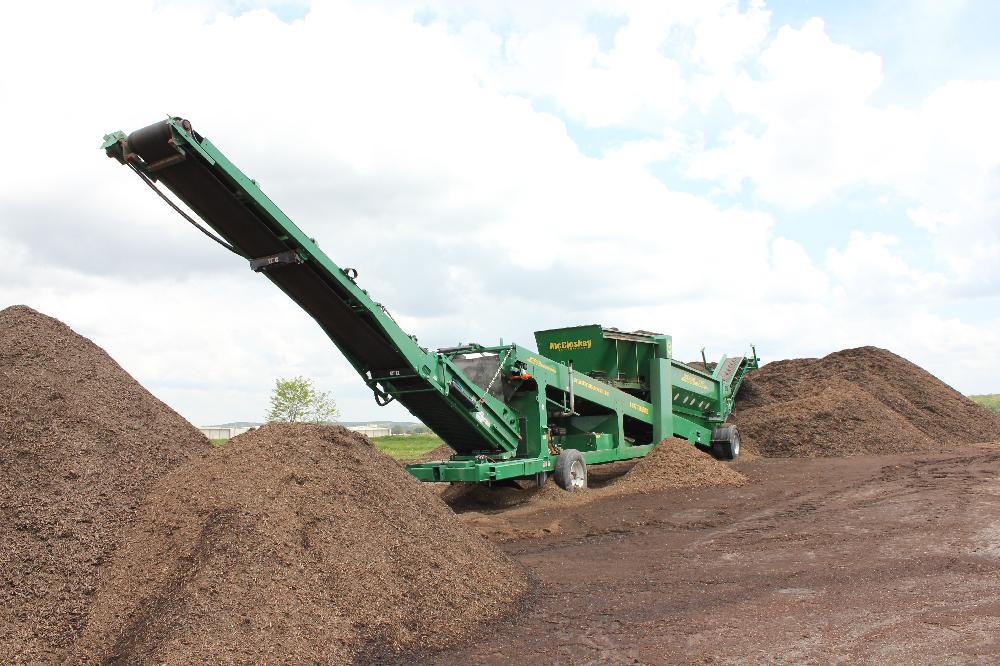

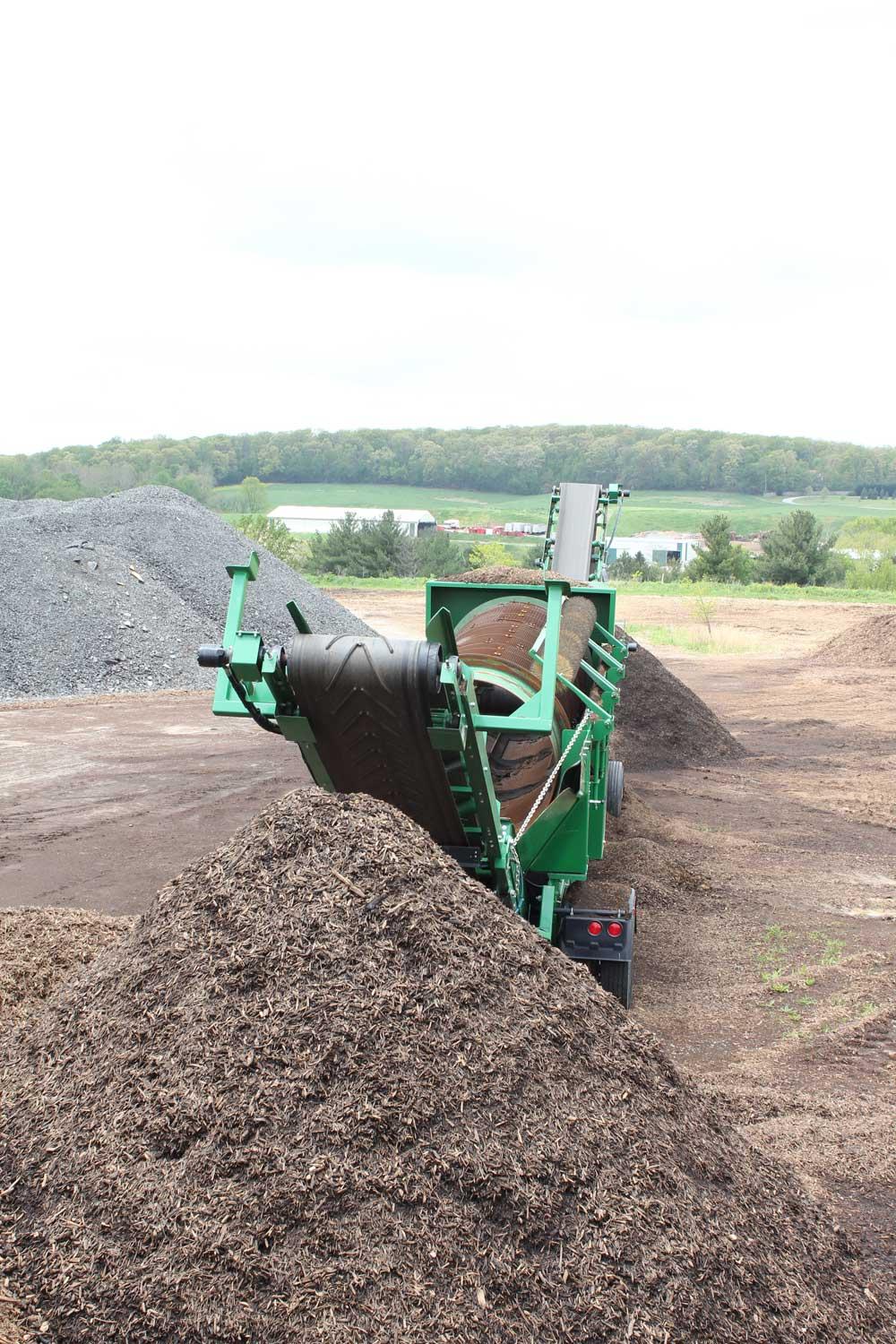

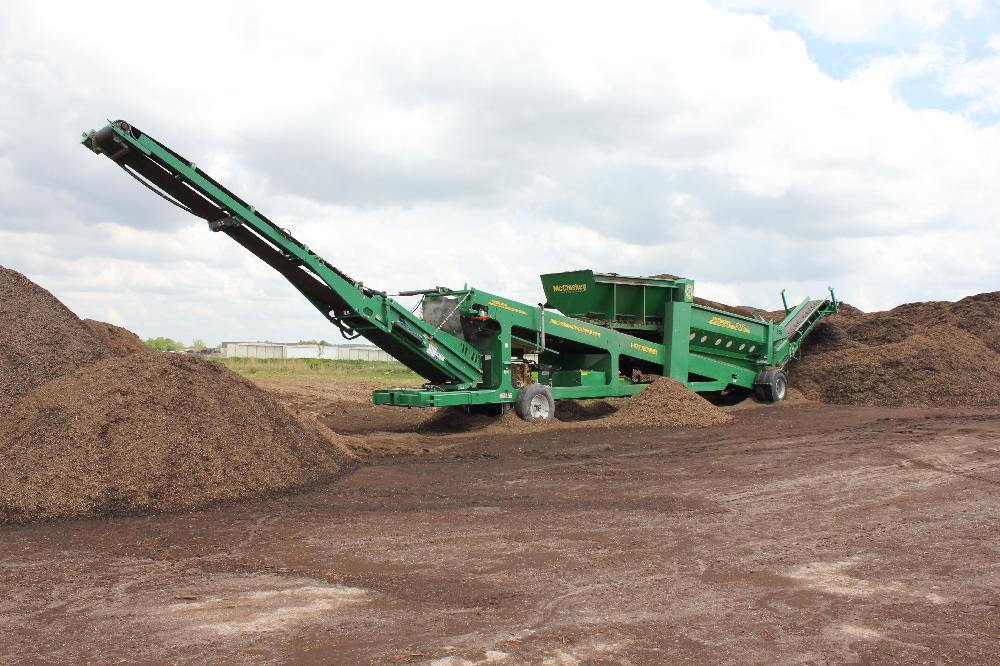

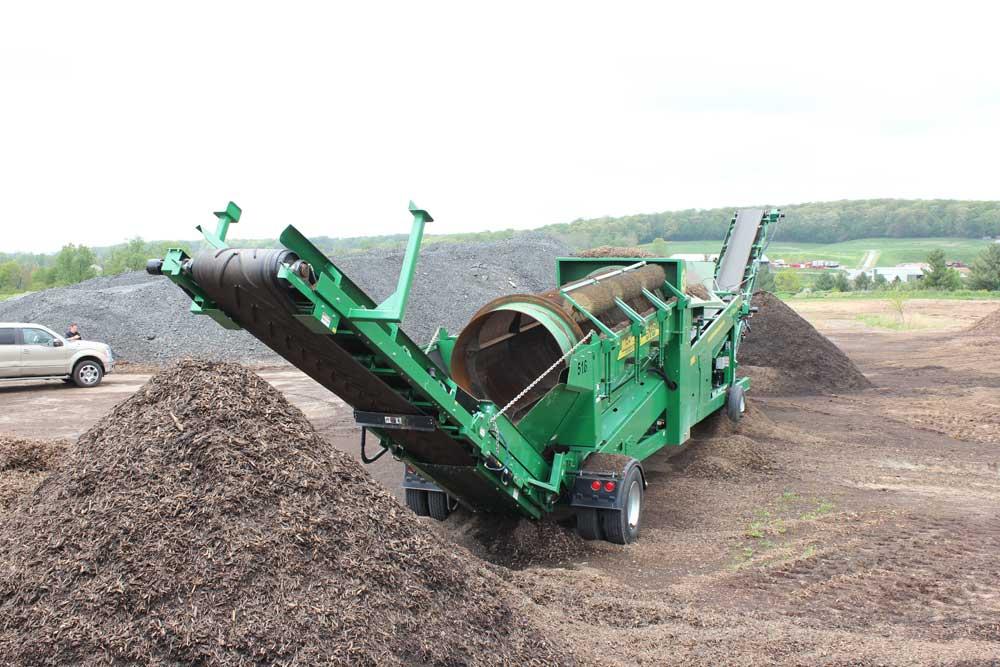

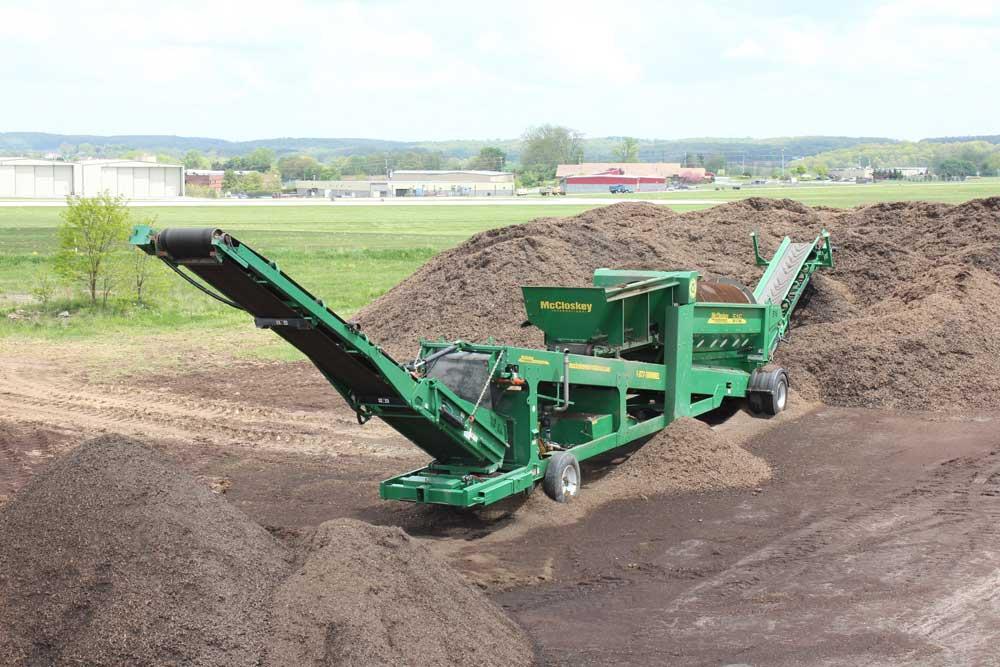

516RE TROMMEL

The 516RE trommel combines the high production of our patented radial conveyor with the features of an electric model. The environmentally friendly 516RE reduces costs, and is perfect where environmental, legislative, or noise constraints are present. The 516 trommels are best suited for mid-to-large size operations requiring portability and proven screening performance.

McCloskey International offers a wide range of drum designs and screen sizes to improve quality and meet high demand. Material such as topsoil, compost, sand and gravel, and wood chip spend more time in the sixteen foot drum for better screening results. The three screen sections allow for flexibility in sizing to maximize productivity, while the hydraulically folding end conveyor allows oversize material to be effectively stockpiled. For heavy duty applications, a remote control hydraulic tipping grizzly can be added to scalp off large material.

The 516RE offers a combination of high production rates, versatility, ease of use and unrivalled strength that has ensured this screener’s popularity with top soil producers, contractors, and landscape supply operators.

Features

Electric model

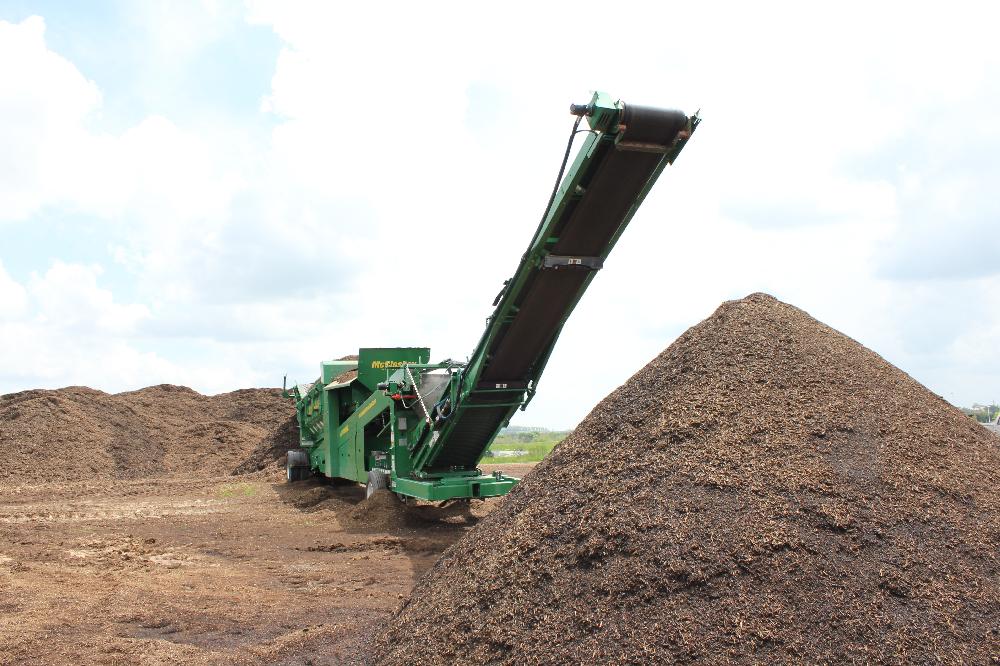

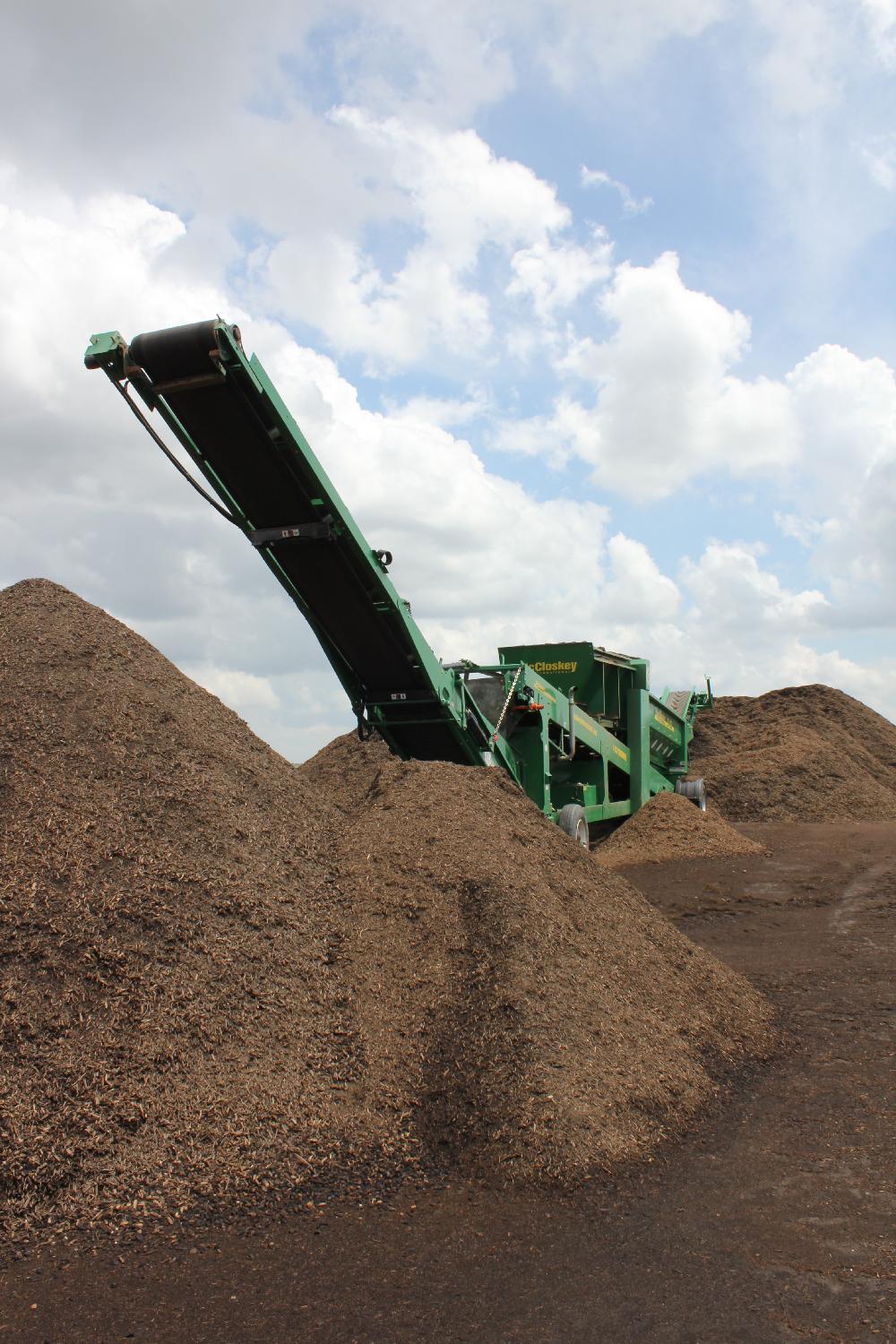

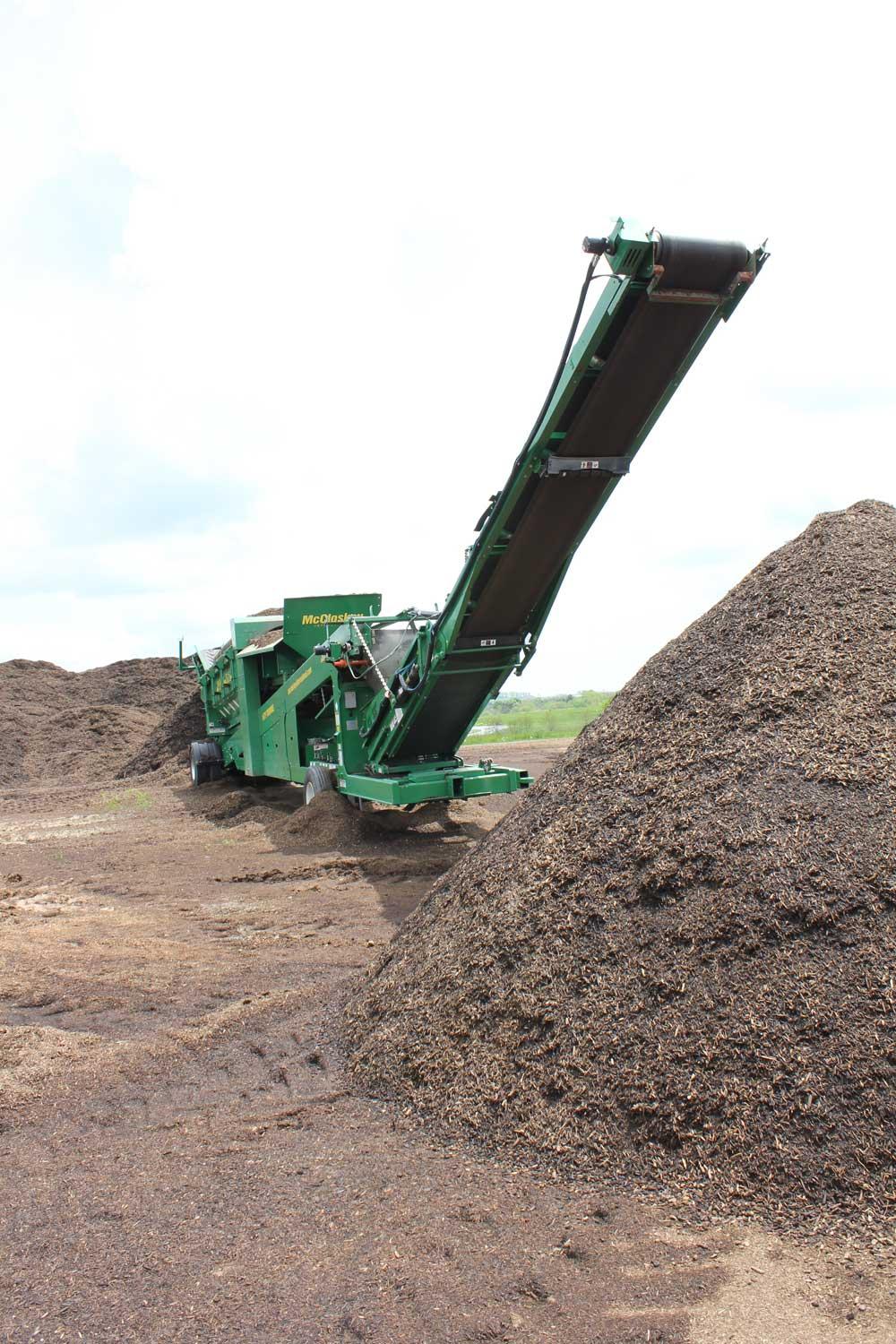

Radial controlled conveyor
1520mm x 4880mm (5'x16') heavy duty trommel drum
Ground level brushes to keep screen clean
Large engine bay
Hydraulic Tipping Grid option
10 minute set up time

Specifications

Engine* 75 kW (100 HP)
Drum Size
1.52m (5') x 4.88m (16')
Screening Area
17.7m² (190ft²)
Hopper Capacity
3.4m³ (4.5yd³)
Fines Conveyor Belt Width
1200mm (48")
Radial Stockpile Height
4.61m (15'-1.5")
Radial Conveyor Belt Width
750mm (30")
*Engine options vary. Consult your local dealer.
