621RE TROMMEL

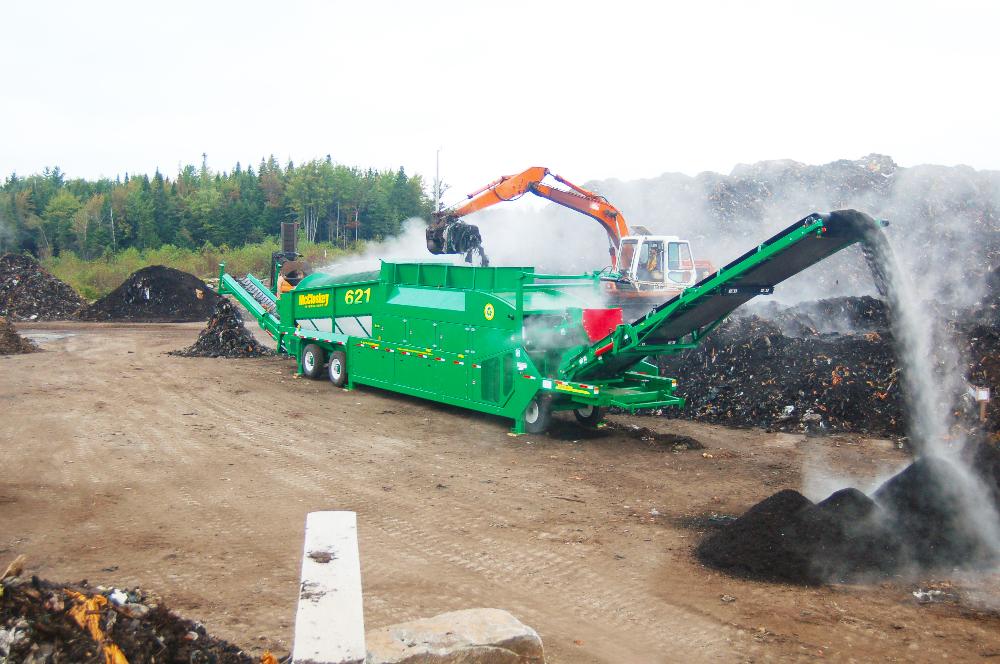

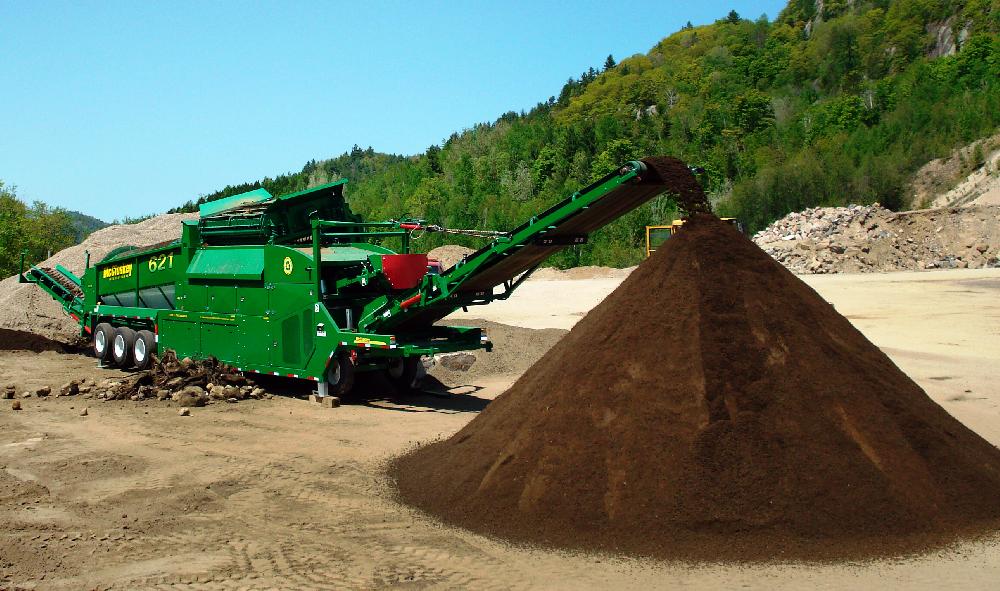

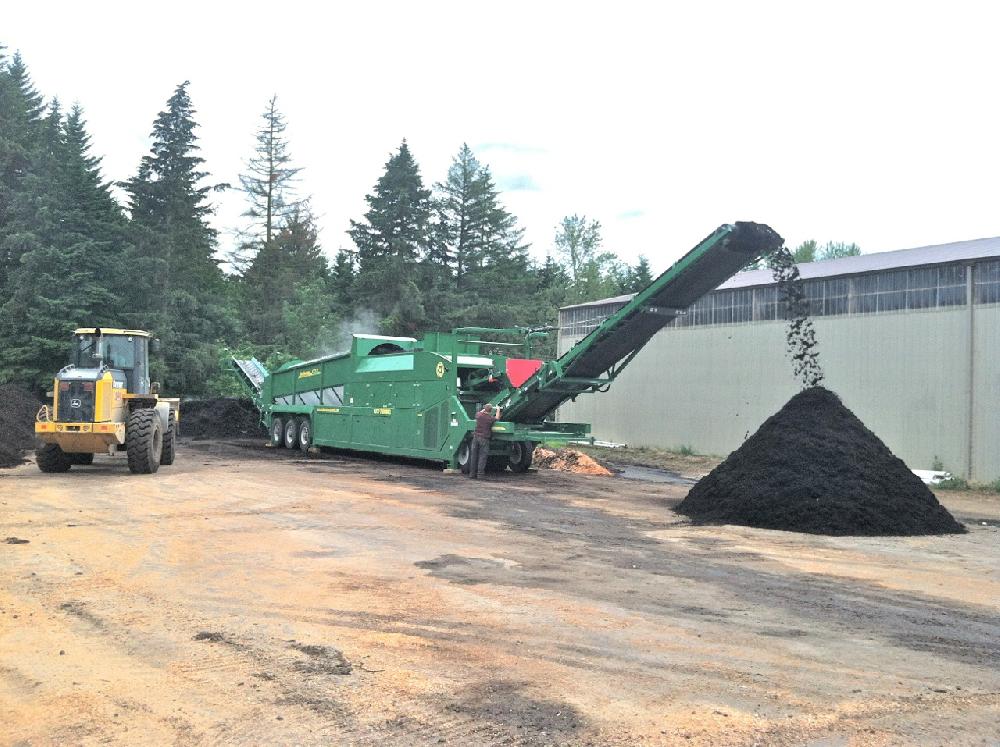

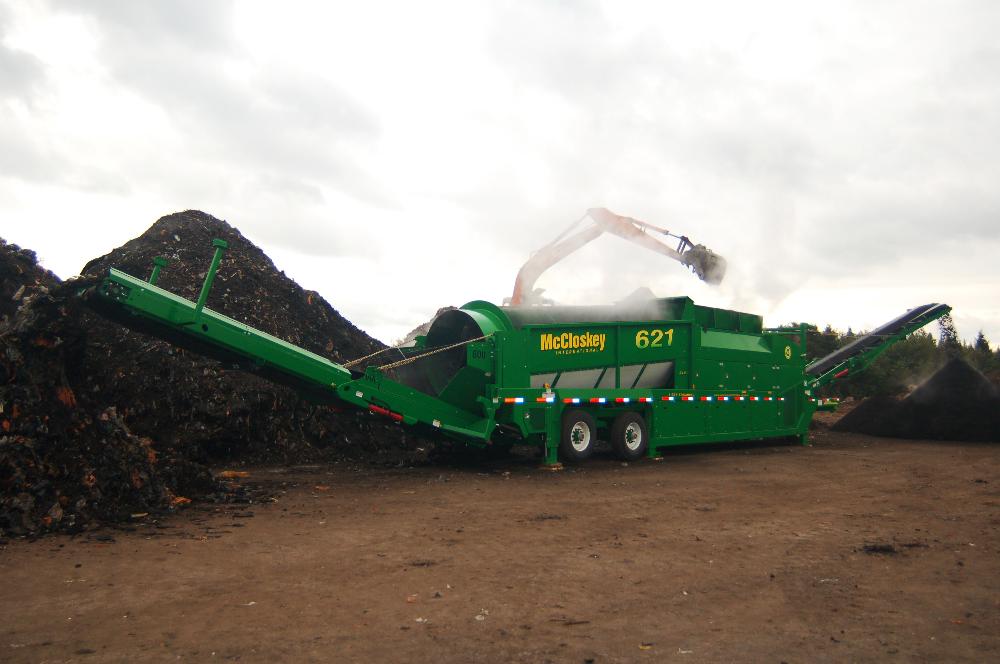

With over thirty-five years of experience, McCloskey International is the world’s leading trommel manufacturer and has pioneered trommel design and innovation. Over this time, the 621 Trommel has established a proven reliability in construction and demolition, topsoil, compost, waste recycling, and many other large screening applications.
With a 174 HP engine, accessible engine bay, and high efficiency diesel hydraulic system the 621 is sure to deliver the maximum operating time. Available in Dual Power, as a wheeled mobile unit, or hydraulic raise/lower track bogie system, with numerous options offered to meet each customer’s unique requirements.
Features
Dual Power available
Remote control radial conveyor
1830mm (6') x 6400mm (21') heavy duty trommel drum
Ground level brushes to keep the screen clean
Drum drive with maximum torque traction and life
Grizzly option available
Hydraulic folding oversize conveyor
5m³ (6.5 yd³) hopper capacity
Wheel mobile or track bogie system
Specifications
| Engine* | 130 kW (174 HP) |
| Drum Size |
1.83m (6') x 6.4m (21') |
| Screening Area |
27.5m² (296 ft²) |
| Hopper Capacity |
5m³ (6.5yd³) |
| Fines Conveyor Belt Width |
1050mm (42") |
| Radial Stockpile Height |
5.11m (16'-9") |
| Radial Conveyor Belt |
1050mm (42") |
