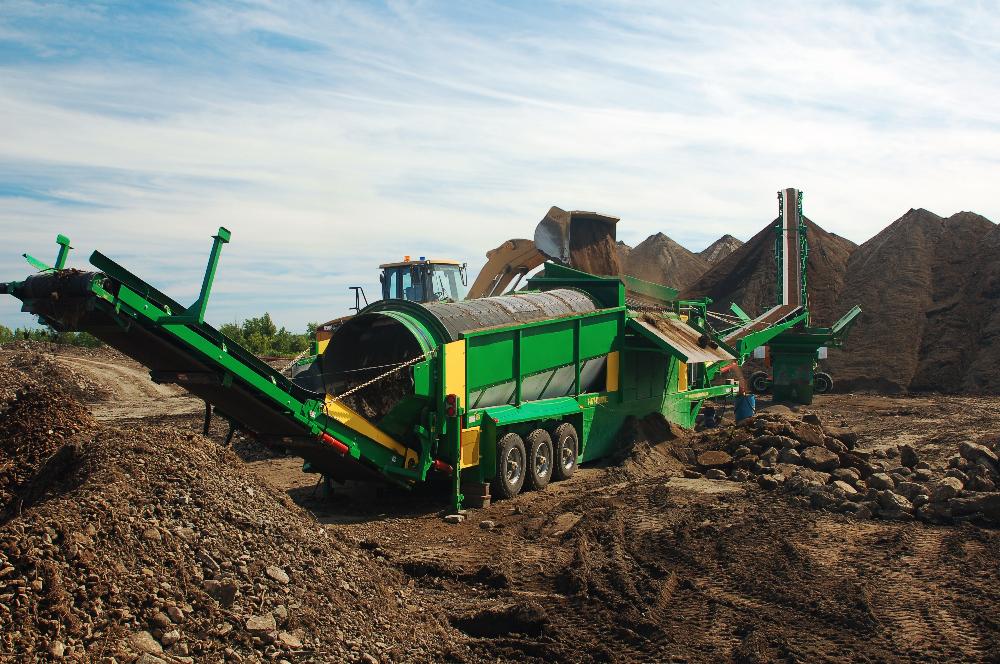

628RE TROMMEL
The McCloskey 628 Trommel Screener is suited for large heavy-duty applications. With a 6’ diameter screen, the 628 Trommel generates a powerful screening action while the 28’ long drum ensures longer time on the screen and the highest quality end product.
Available in Dual Power, as a wheeled mobile unit or hydraulic raise/lower bogie system, McCloskey provides numerous drum and feeder options that are offered to meet each customer’s unique requirements.
All McCloskey trommels undergo extensive field testing and are continuously improved through customer feedback.
Features
Dual Power available
Easy transport site-to-site
1050mm (42") radial conveyor
1830mm x 8530mm (6'x28') trommel screen
Ground level brushes to keep screen clean
Wheel mobile bogie system
10 minute set up time
Specifications
| Engine* | 130 kW (174 HP) |
| Drum Size |
1.83m (6') x 8.53m (28') |
| Screening Area |
34.5m² (370ft²) |
| Hopper Capacity |
5m³ (6.5 yd³) |
| Fines Conveyor Belt Width |
1050mm (42") |
| Radial Stockpile Height |
5.13m (16'-10") |
| Radial Conveyor Belt Width |
1050mm (42") |
