733RE TROMMEL

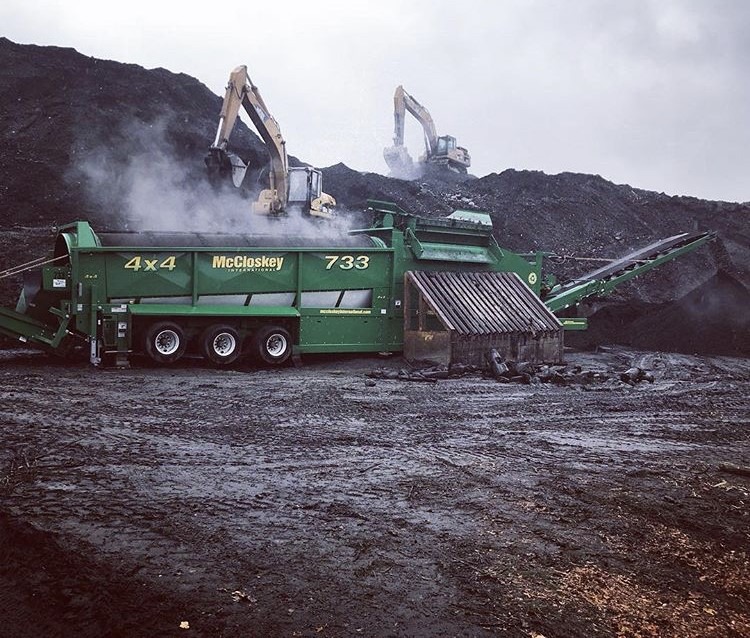

The McCloskey 733 trommel screeners are high production machines with a 160º radial fines conveyor and an oversize end conveyor for extensive stockpiling capabilities.
Also available in dual power, the 733 boasts a 130 kW (225HP) engine powering the world’s highest capacity mobile trommel.
With a 10.06m (33ft) long drum – allowing the material longer time on the screening surface – and a range of drum options, the 733 offers an unrivalled high quality product in a variety of industries including construction and demolition, topsoil, compost, waste recycling, and many other large screening applications.
The 733 trommel is available as a wheeled mobile unit, with numerous custom drum and feeder options that are offered to meet each customer’s unique requirements.
Features
Specifications
| Engine* | 130 kW (174 hp) |
| Drum Size |
2.13m (7') x 10.06m (33') |
| Screening Area |
47m² (510ft²) |
| Hopper Capacity |
6.9m³ (9 yd³) |
| Fines Conveyor Belt Width |
1.37m (54") |
| Radial Stockpile Height |
5.09m (16'-8") |
| Radial Conveyor Belt Width |
1.20m (48") |
