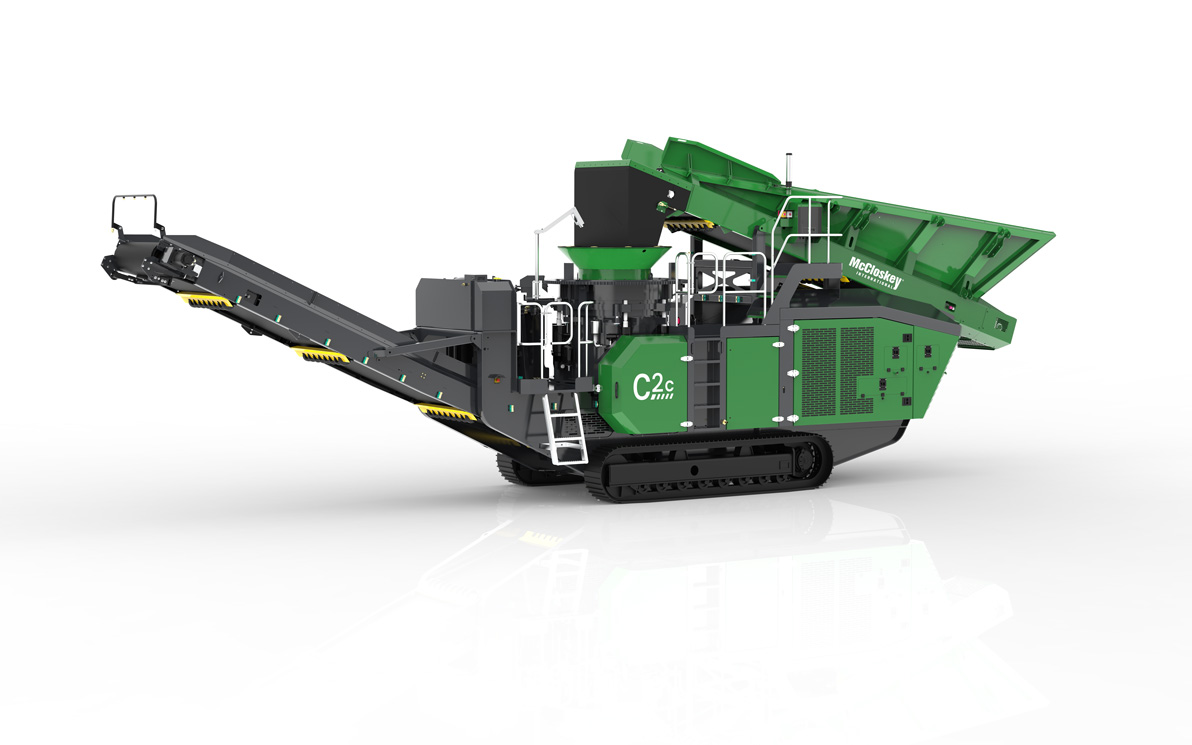

C2C CONE CRUSHER
The C2C delivers high production from material feed to end product stockpile due to its innovative material flow features. As the material enters the cone chamber, features like a long stroke and high speed contribute to the high productivity, while ensuring the highest quality of end product with variable speed.
It is designed to function in crushing spreads with machines such as our J40 Jaw Crusher and S130 Screening Plant to produce cubical chip from 3/8” to 5” in size.
Our C2 cone crusher distinguishes itself as an entry level cone with full level features, such as: An anti spin system, load and material level monitoring, fully hydraulic push button CSS adjust and full hydraulic relief system.
Features
MC200 Cone
Integrated hopper with folding rear door
I-beam plate fabricated chassis construction
268kW (360Hp) Volvo D11 T4 Final engine or 260kW (350Hp) CAT C9 Tier 3 standard engines
Tracked
Fast setup time
Compact chassis design for ease of maintenance and portability
Specifications
| Engine | 360Hp (268kW) |
| Transport Height |
11’ - 1.8” (3.4m) |
| Transport Length |
47’ - 10” (14.59m) |
| Transport Width |
8'8" (2.65m) |
| Impact Rotor |
41.3" diameter x 44.3" wide |
| Stockpile Height (Side Conveyor) |
10’ - 10” (3.31m) |
