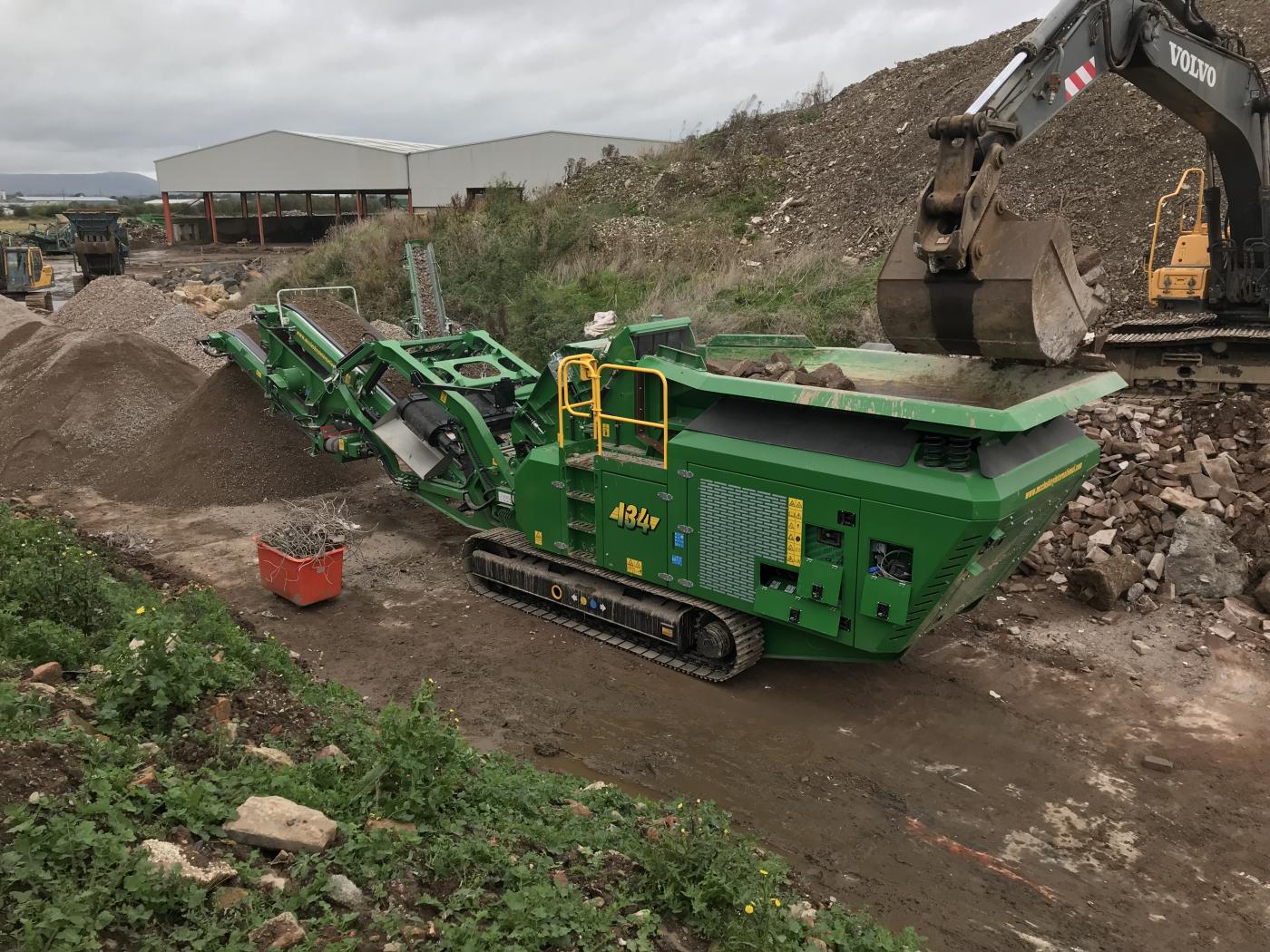

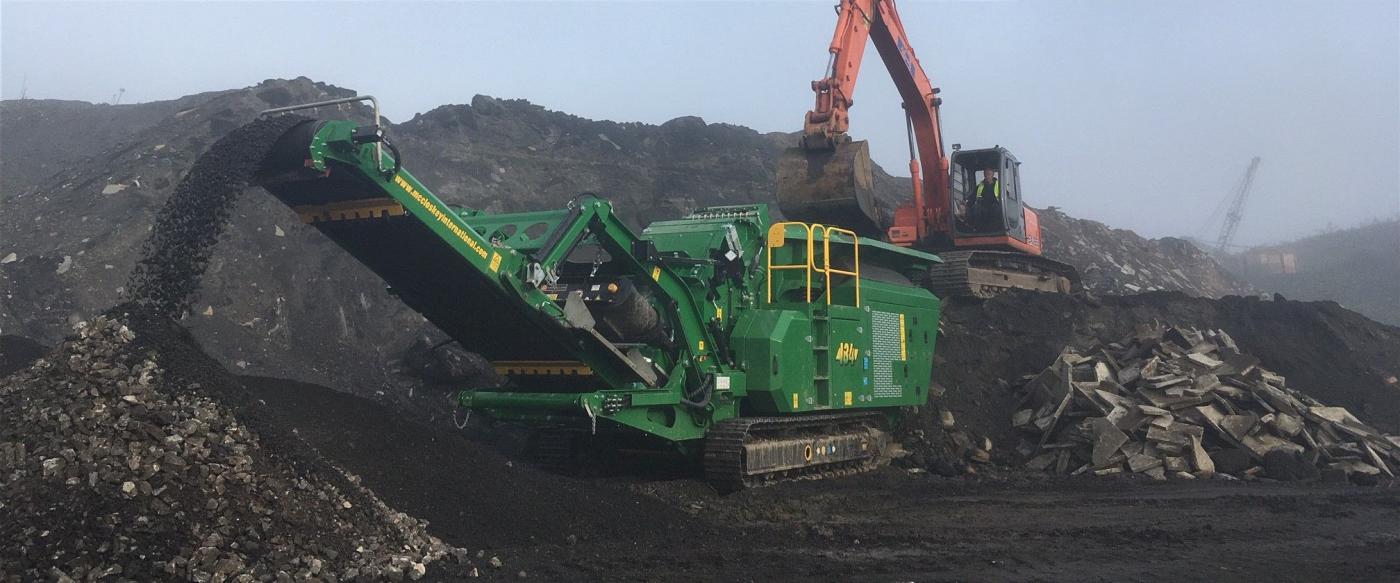

I34/I34R COMPACT CRUSHER
The I34 and I34R are the perfect solution for projects with small footprints but big requirements. These compact, mobile crushers are suited particularly to construction and demolition recycling, asphalt recycling, and aggregates.
The versatile and mobile compact impactors deliver high performance and expanded versatility in a highly mobile lineup to customers around the world. Able to nimbly move around in tight spaces, the small footprint is uniquely suited to the recycling, demolition and smaller scale construction projects. Less than 2.5m wide, the crushers can be transported easily from site to site.
The I34 compact crusher boasts flexibility as well. Not only can the I34 continue crushing while moving, it can convert to a recirculating impactor in just a few hours.
Features
Able to track and crush
I34R swing out radial return conveyor
2000mm x 1100mm (6'-7" x 3'-7") double deck recirculation screen on I34R
4 full height blow bars with change hoist and various blow bar material options
Apron adjustment to suit either Secondary or Primary crushing
Grizzly punch plate / Grizzly blanking plate
Refueling pump
Specifications
| Engine* | 188kW (252 Hp) |
| Impactor | 900mm (35.4") x 820mm (32.3") |
| Feed Opening | 860mm (34") x 650mm (25.6") |
| Grizzly Feeder | 2102mm (82.8") x 4230mm (166.5") |
| Weight Inc. Magnet & Dirt Conveyor | 23,000 kg (52,029 lbs) |
| Side Conveyor Stockpile Height | 2583mm (8' 6") |
*Engine options vary. Consult your local dealer.
| Engine* | 188kW (252 Hp) |
| Impactor | 900mm (35.4") x 820mm (32.3") |
| Feed Opening | 860mm (34") x 650mm (25.6") |
| Grizzly Feeder | 2.10m (82.8") x 4.23m (166.5") |
| Weight Inc. Magnet & Dirt Conveyor | 26,300 kg (57,982 lbs) |
| Fines Conveyor Stockpile Height | 3.02m (9' 11") |
| Side Conveyor Stockpile Height | 2.58m (8' 6") |
*Engine options vary. Consult your local dealer.
