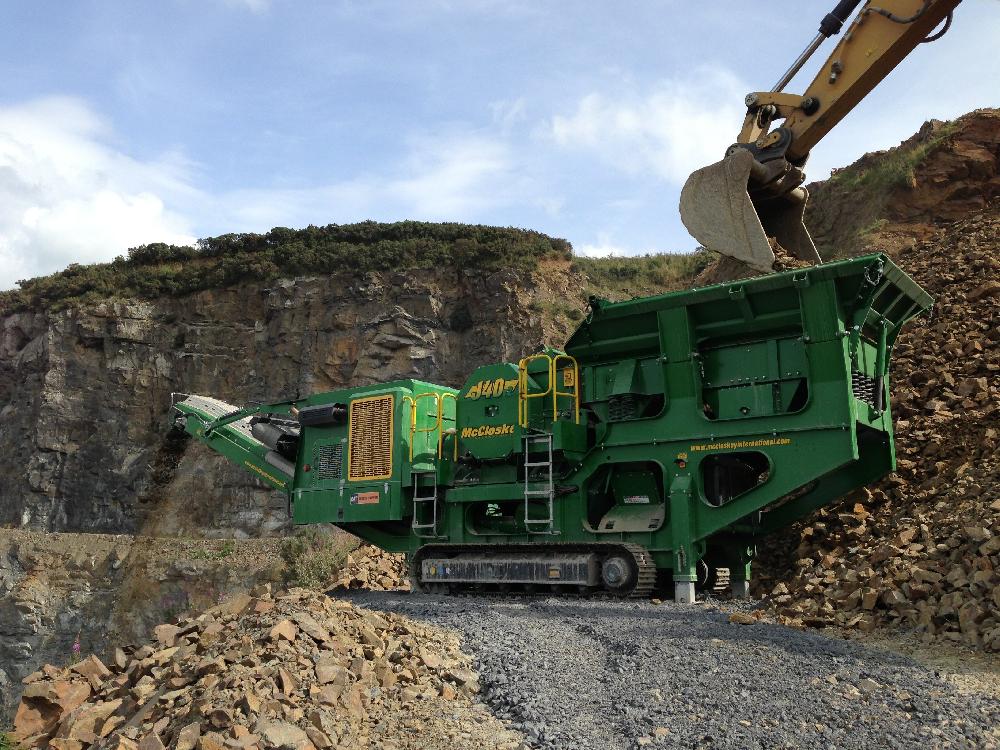

J40 JAW CRUSHER
The J40 Jaw Crusher continues McCloskey’s focus on quality, durability, and productivity.
With its heavy duty cheekplate design, 40″ wide jaw and user-friendly control panel with excellent machine diagnostics, the J40 jaw crusher provides contractors with a highly portable option while meeting all production expectations. At 2.5 metres wide, the J40 jaw crusher is ideal for applications that require a high degree of mobility.
Maximum productivity is delivered through the enhancements to the deep jaw box, including a faster jaw speed and a larger gap between the crusher discharge and main conveyor feedboot. The J40 retains the core values expected in a full size McCloskey jaw crusher, including high capacity production and heavy duty build, packaged for efficiency and mobility.
Features
True 1016mm (40") x 610mm (24") jaw
Hydraulic direct drive grizzly feeder
High capacity hydraulic folding hopper
900mm (36") main conveyor
User friendly control panel
Ideal 2.5m (8' -2.5") wide transport size
Optional overband magnet
10 minute set up time
Specifications
| Engine* | 166kW (225HP) |
| Feed Opening** |
1016mm (40") x 610mm (24") |
| Crusher Speed |
300 rpm |
| Grizzly Feeder |
3840mm (12'-7") x 950mm (37'-4") |
| Hopper Volume |
5.4m³ (7.4yd³) |
| Stockpile Height Main Conveyor |
11' 4.2" (3.45m) |
| Stockpile Height Side Conveyor |
8' 2" (2.50m) |
