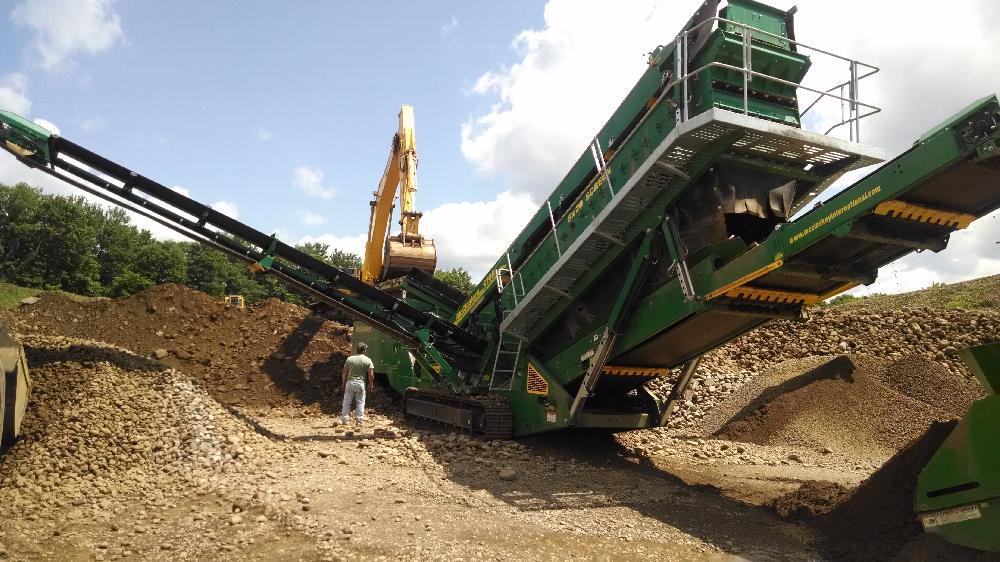

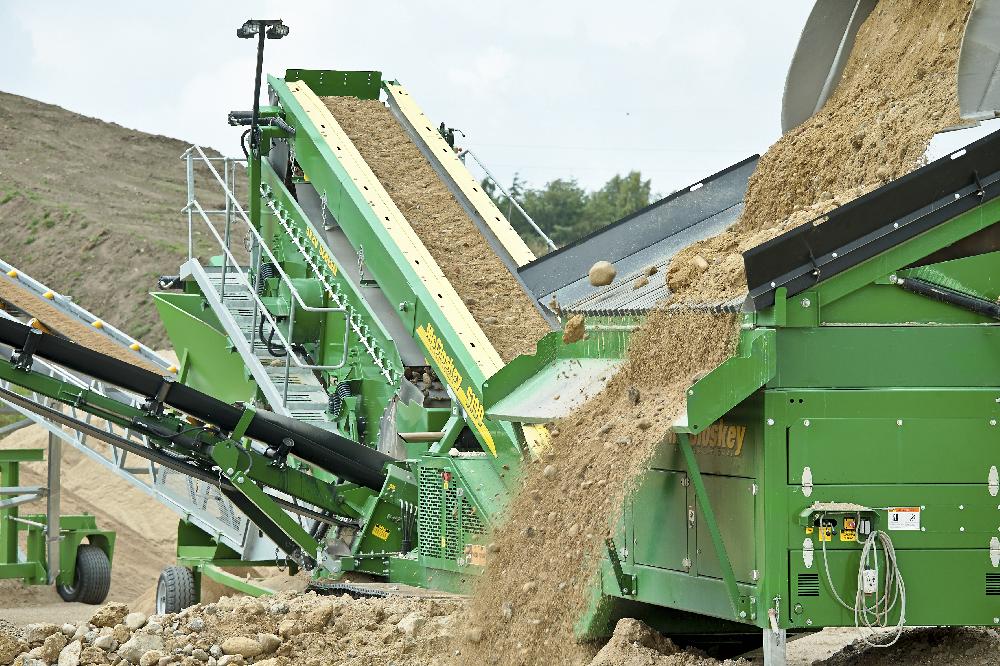

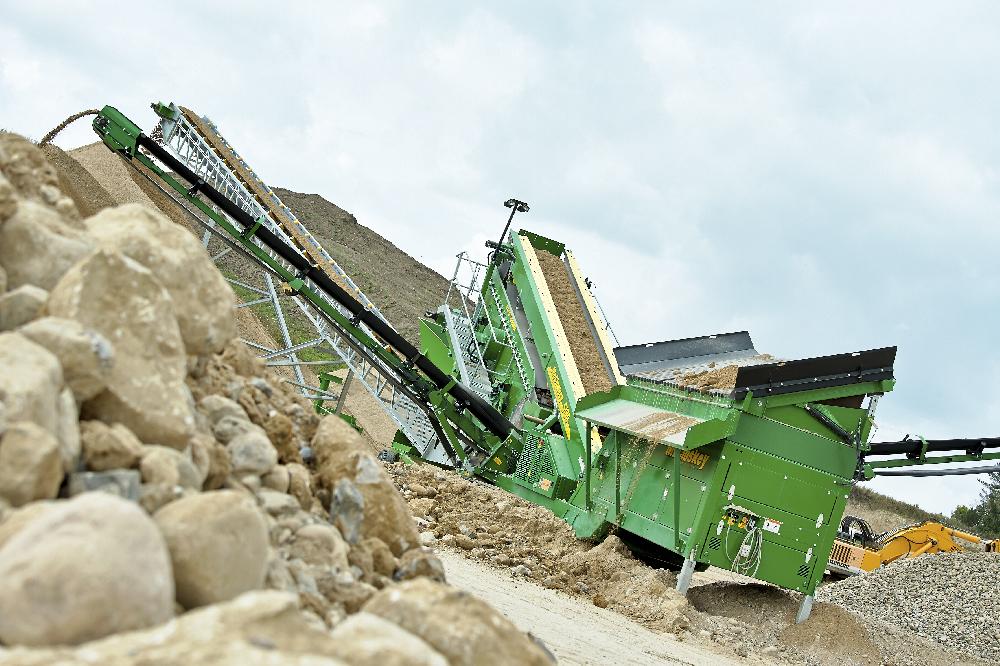

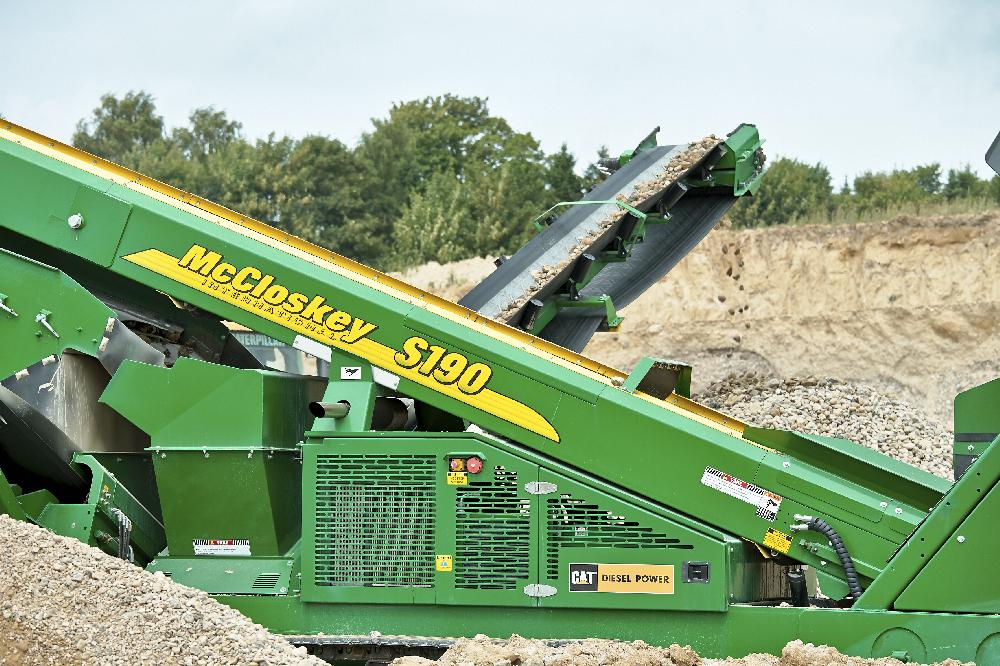

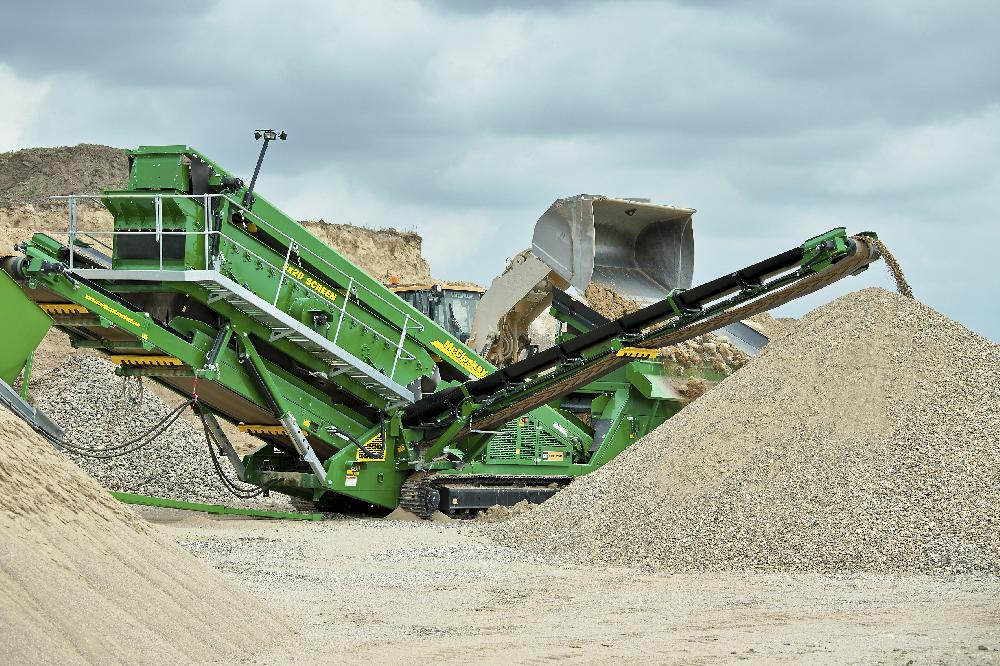

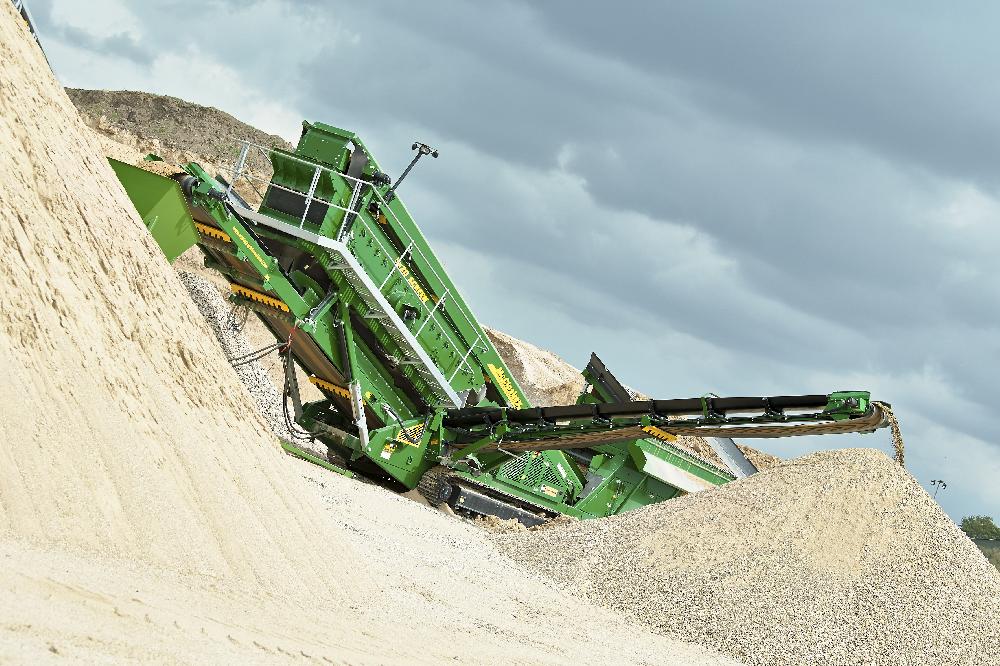

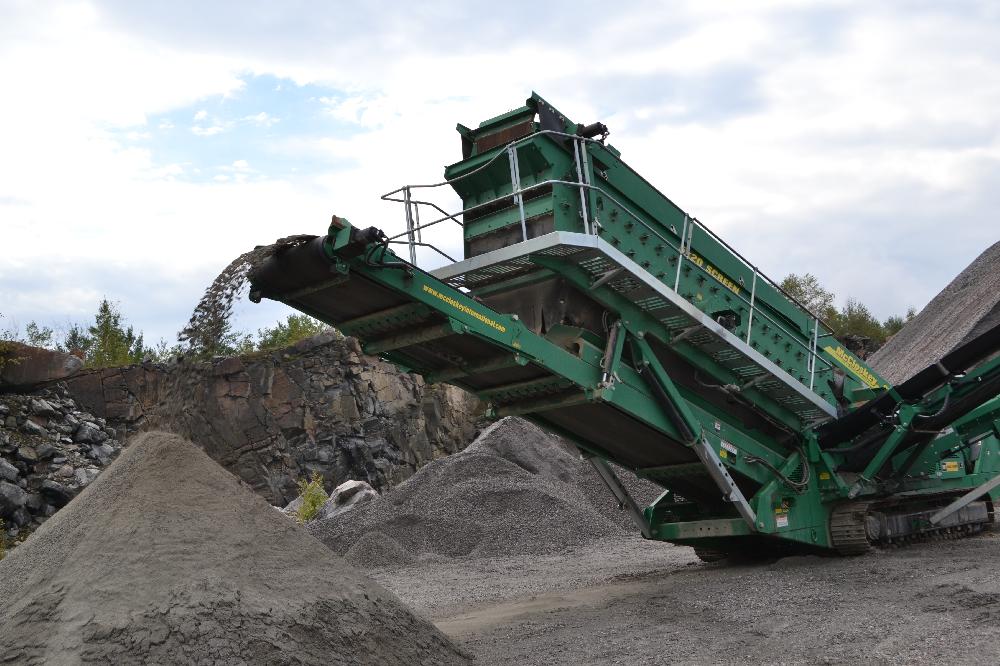

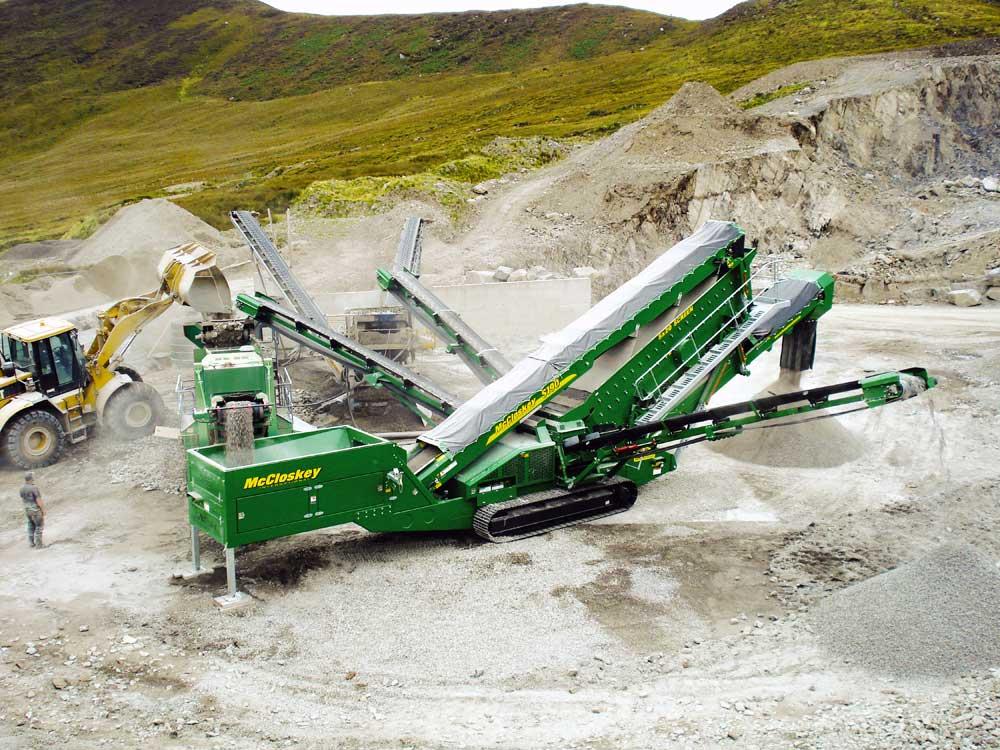

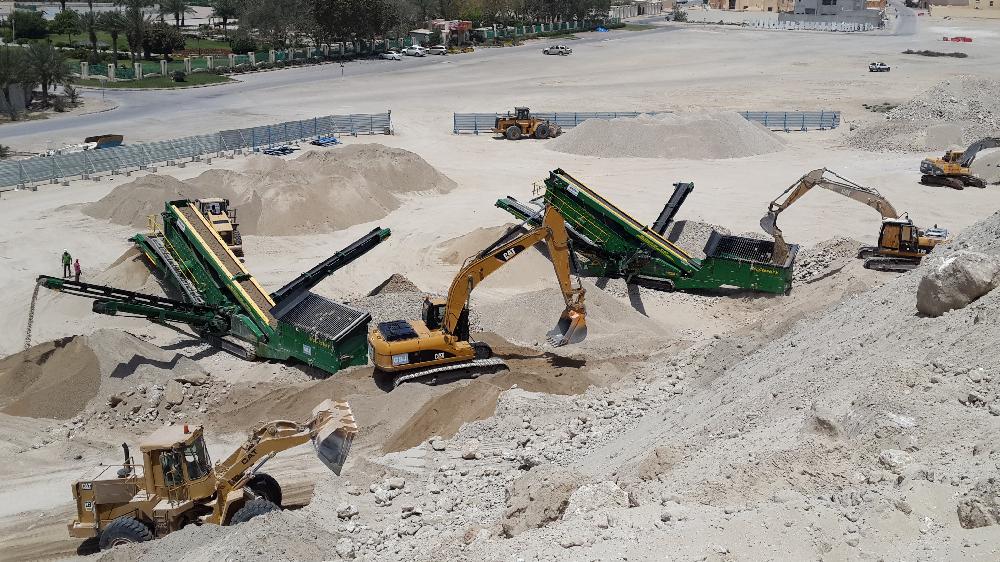

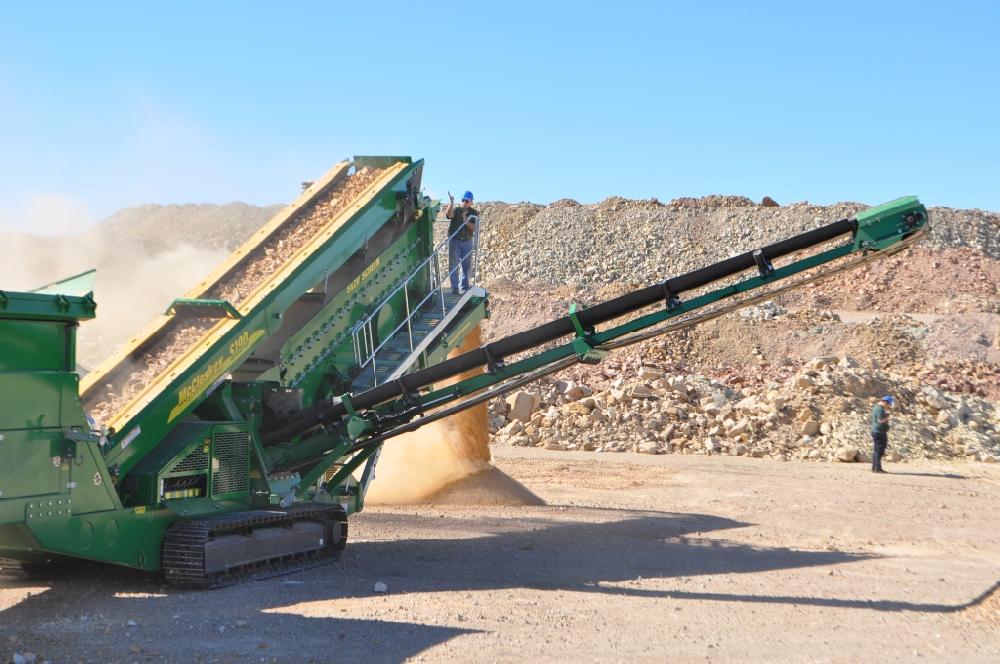

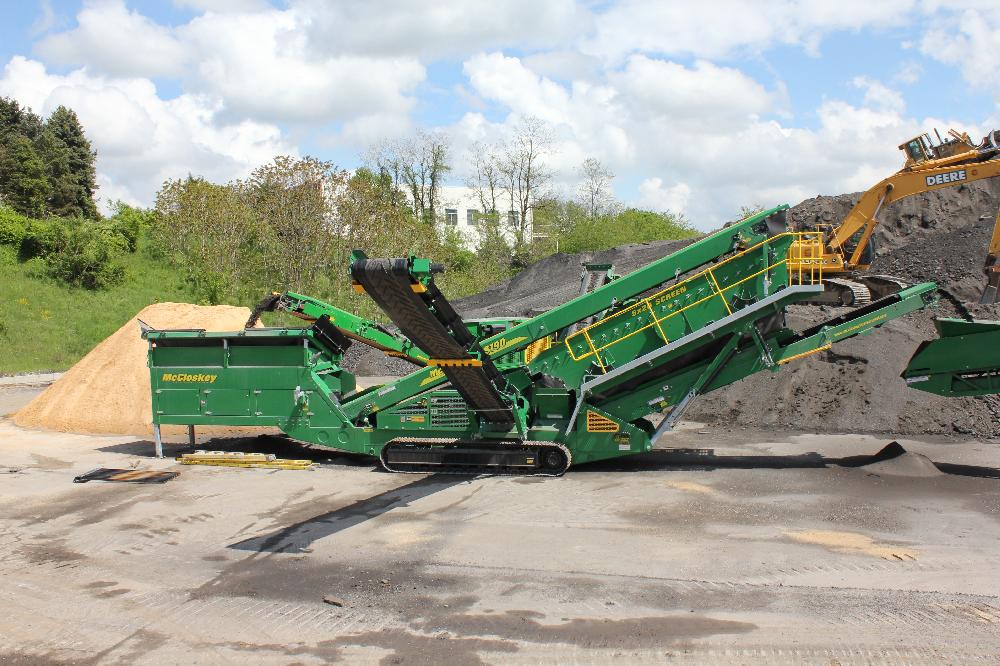

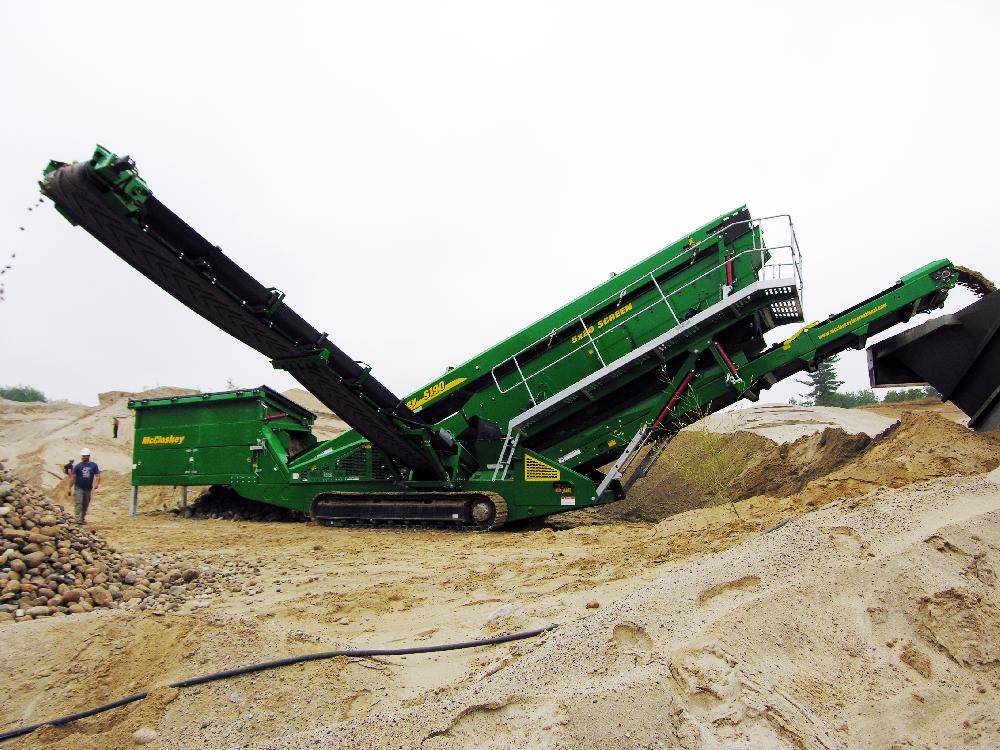

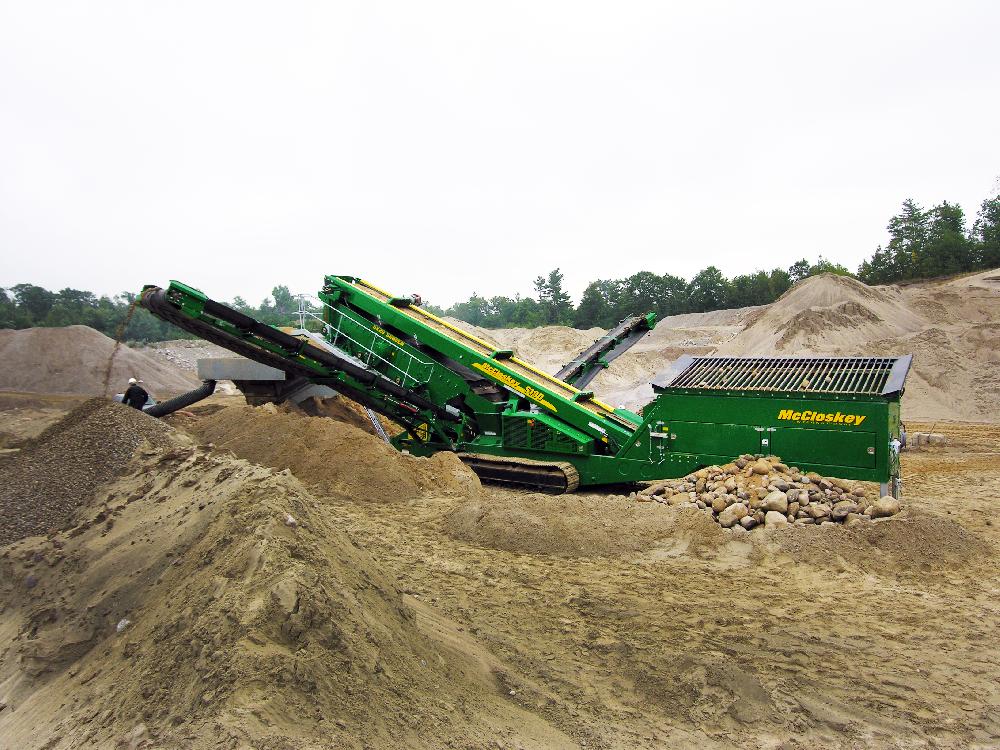

S190 SCREENER
Available in dual power, double or triple deck models, the S190 pushes industry performance standards and leads the competition with the most advanced and innovative 20′ x 5′ mobile vibratory screening plant in production today. The S190 High Energy Screener clearly demonstrates McCloskey’s focus on making customer focused features standard.

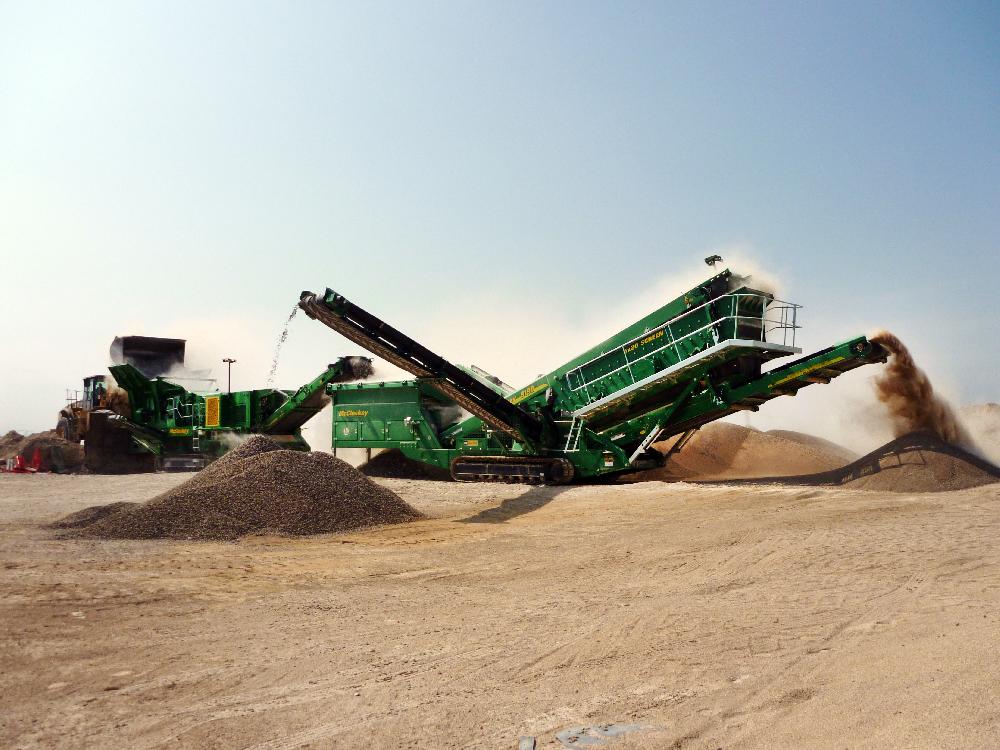

An adjustable screenbox angle allows adaptability to a wide range of material applications including quarrying, mining, sand and gravel, coal screening, topsoil, and woodchip. With the highest grade specifications and component parts, the S190 screener is easily the number one choice for high productivity, quality and value. The S190 Triple Deck has the highest combined true screening area across three decks and paired with its high energy screening action the McCloskey S Series models are the superior choice in material screening.
Features
Dual Power available
Most advanced 6100mm x 1524mm (20' x 5') plant in production
12' hopper capacity 8.01m³ (10.48 yd³) or 15' hopper capacity 10.01m³ (13.09yd³)
1200mm (48") feed conveyor
Remote control tipping grid
10 minute set up time
Specifications
(Tracked - S190 Double Deck)
Engine* | 130 HP (98 kw) |
Screenbox Top Deck |
5' x 4' side tension - 5 off |
Screenbox Bottom Deck |
5' x 6' end tension - 3 off |
Main Conveyor Belt Width |
1050mm (42") |
Stockpile Height Tail Conveyor |
4638mm (15' - 3") |
Stockpile Height Side Conveyor |
5100mm (16' - 9") |
