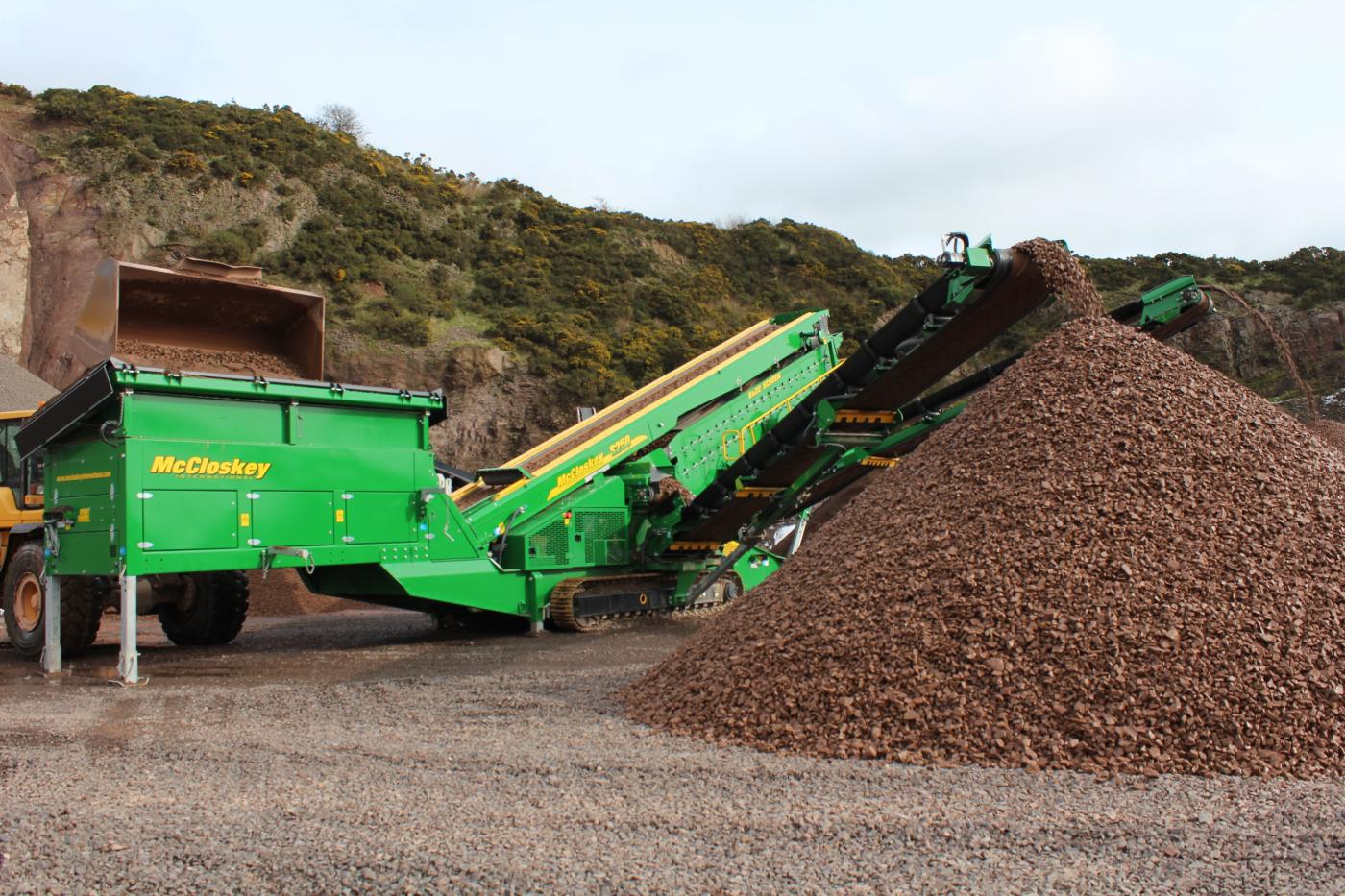

S250 SCREENER
The new McCloskey S250 Screener rises above all industry standards, positioned as one of the world’s largest track mobile screeners. The 22 x 6 heavy duty high energy 2 bearing 3 deck screeners deliver more true screening area.
Available in dual power, double or triple deck models, the S250 features 900mm (36”) wide side conveyors and an 800mm (32”) wide oversize conveyor for higher material flow. The oversize conveyor also features an open roller design, reducing power requirements. This class leading screening area, along with its high energy screening action, ensure that the McCloskey S250 is the superior choice for aggregate material screening.
Features
Dual Power available
22 x 6 heavy duty high energy 2 bearing screenbox
900mm (36”) wide side conveyors, 800mm (32”) wide auxiliary conveyors for higher material flow

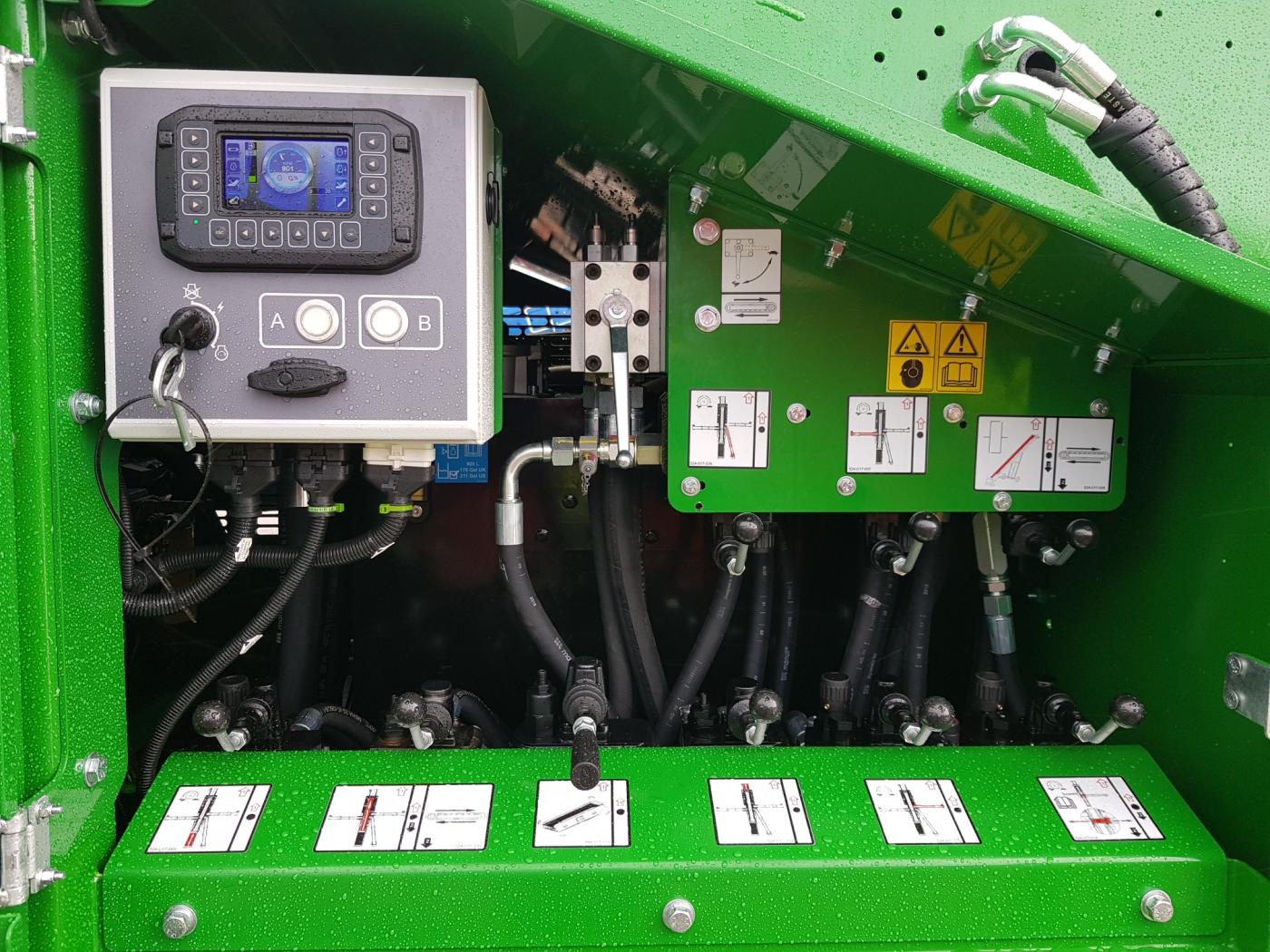

Individual speed adjustment on conveyors for superior material flow control
Remote control tipping grid
Up to 10m3 (13.1 yd3) high capacity hopper
Generous grid opening allows the use of larger loading shovels
Fast on-site setup time – 15 minutes typically
Specifications
| Engine | 165 kW (225 Hp) |
| Transport Height |
3.6m (11’ 10”) |
| Transport Length |
19.55m (64’ 1.5”) 15’ Hopper/18.63m (61’ 1.5”) 12’ Hopper |
| Transport Width |
3.66m (12’) |
| Weight |
38,000 kg (83,776 lbs) |
| Stockpile Height - Tail Conveyor |
4992mm (16’ - 4.5”) |
| Stockpile Height - Side Conveyor |
5398mm (17’ - 8.5”) |
| Screenbox Dimensions |
6710mm x 1830mm (22’ x 6’) |
