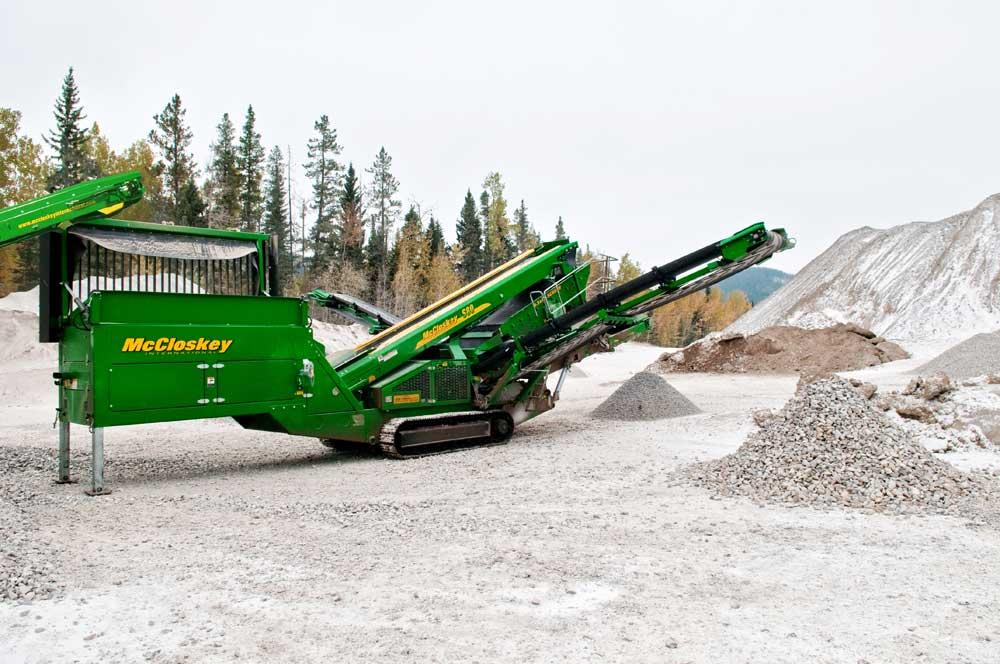

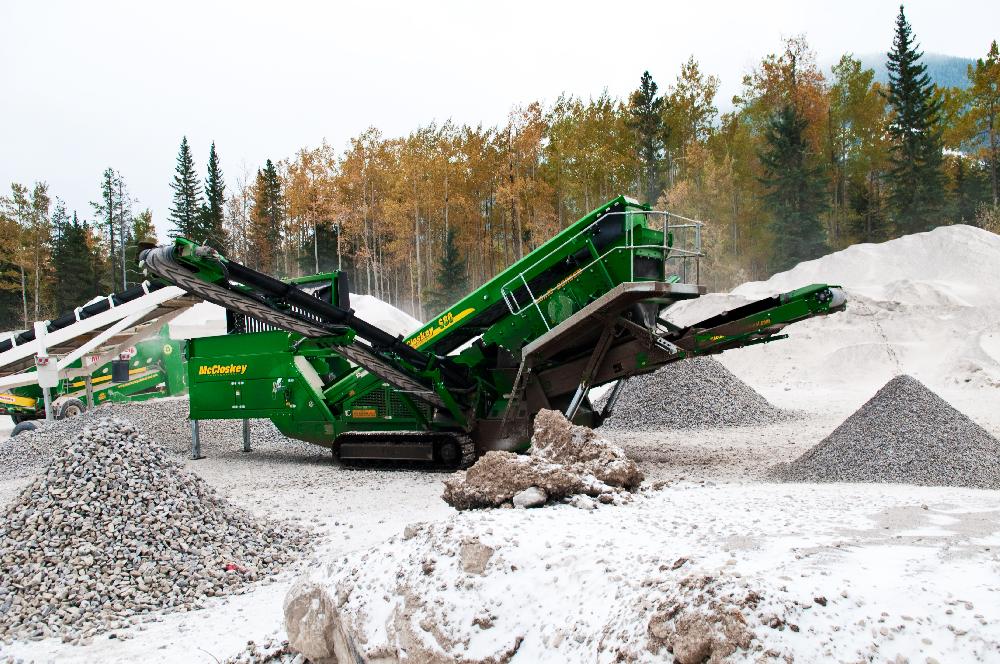

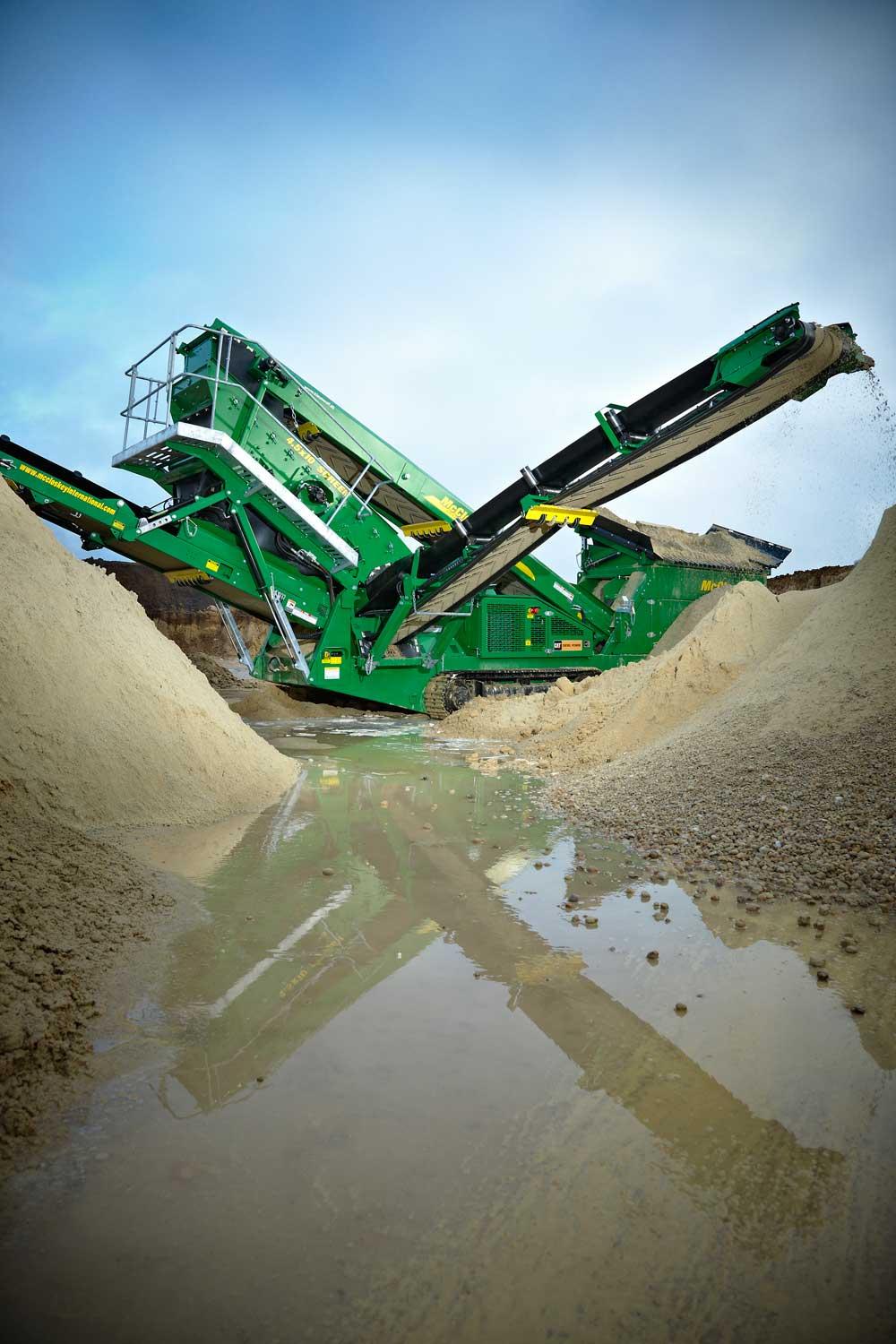

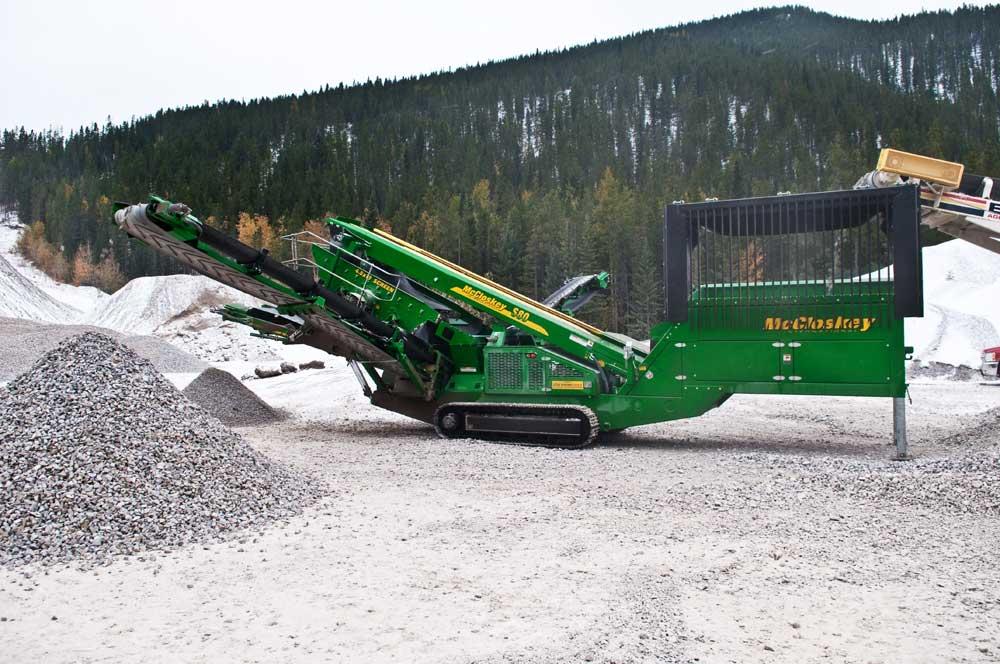

S80 SCREENER
The S80 screener is designed for users who require less capacity than the S130 and S190 models offer, but are not willing to sacrifice the quality features found on the McCloskey S-Range of vibratory screeners. These features include a High Energy Screenbox, large hopper and large engine bay.
The S80 can employ the steepest angle of any three- way-split screening plant currently available, ensuring best-in-class screening in materials like sand and peastone. Users with smaller floats or in areas with strict transport regulations will benefit from the smaller transport dimensions.
Features
3050mm (10') x 1370mm (4.5') Screenbox
Open engine bay for easy maintenance
900mm (36") main conveyor
Steepest screen angle of any 3-way split screening plant on the market
Condensed transport dimensions
Large, steep-sided hopper for maximum effciency
Specifications
| Engine* | 130 HP (98 kw) |
| Screenbox Top Deck |
3050mm (10') x 1370mm (4.5') |
| Screenbox Bottom Deck |
2440mm (8') x 1370mm (4.5') |
| Belt Width - Main Conveyor |
900mm (36') |
| Stockpile Height - Tail Conveyor |
3790mm (12'-5") - Track Model 4100mm (13'-6") - Wheel Model |
| Stockpile Height - Side Conveyor |
4110mm (13'-6") - Track Model 4420mm (14' 6") - Wheel Model |
