ST100 WHEELED STACKERS
The McCloskey ST100 wheeled stackers are designed for high capacity stockpiling operations. All units come standard with diesel power units, hydraulic main lift and hydraulic top fold. Electric models are available based on the best application for the customer’s business.

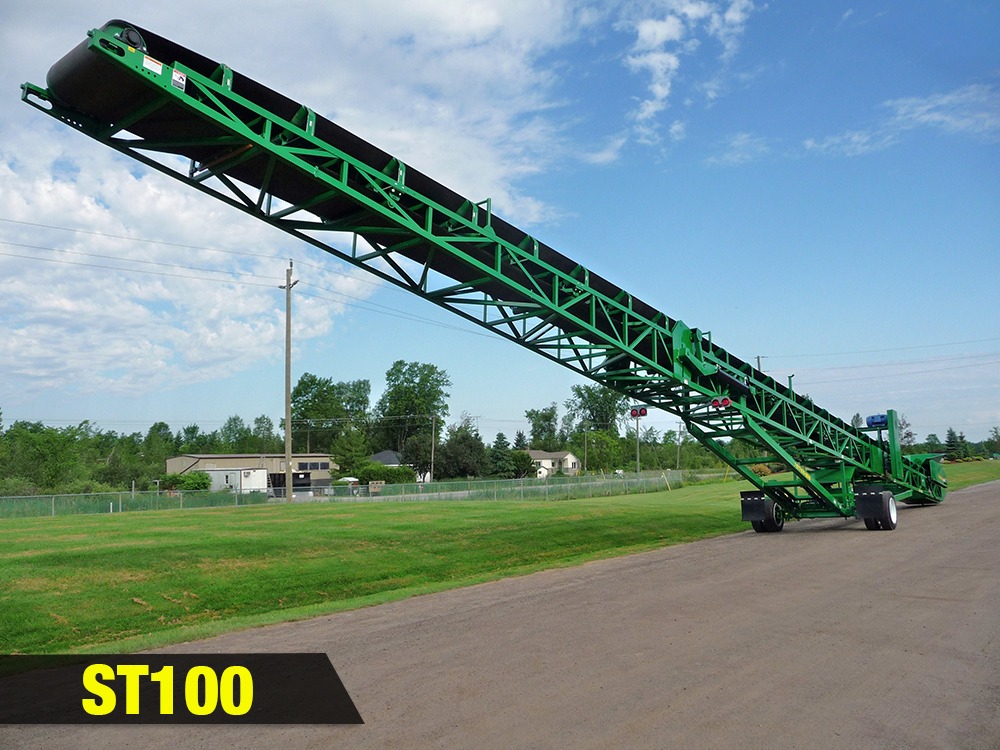

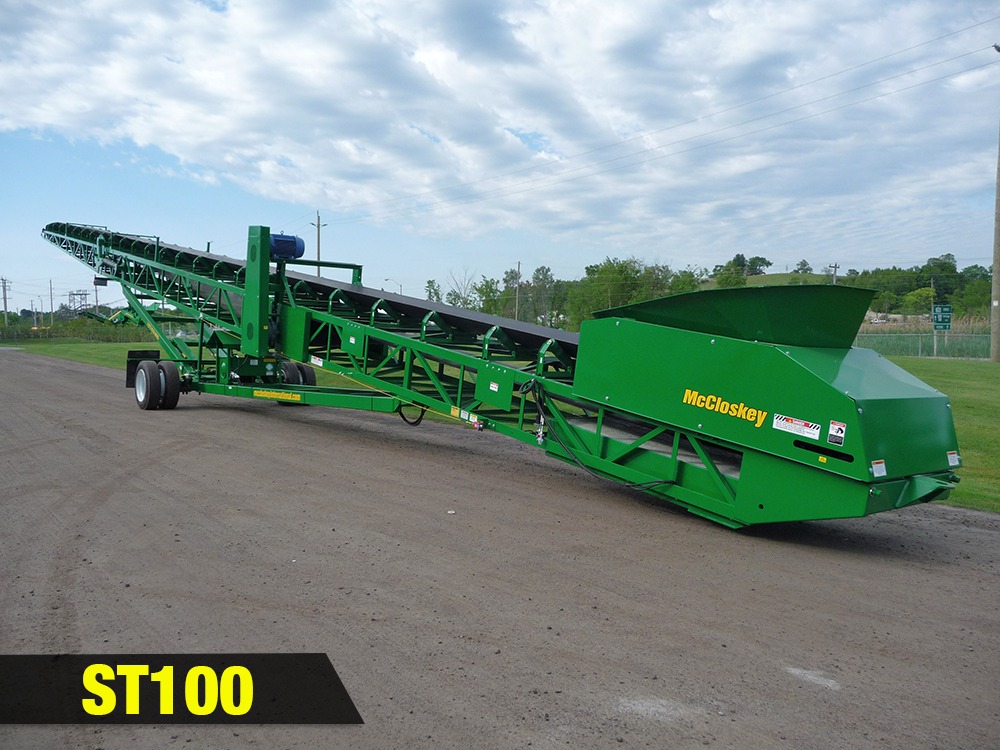

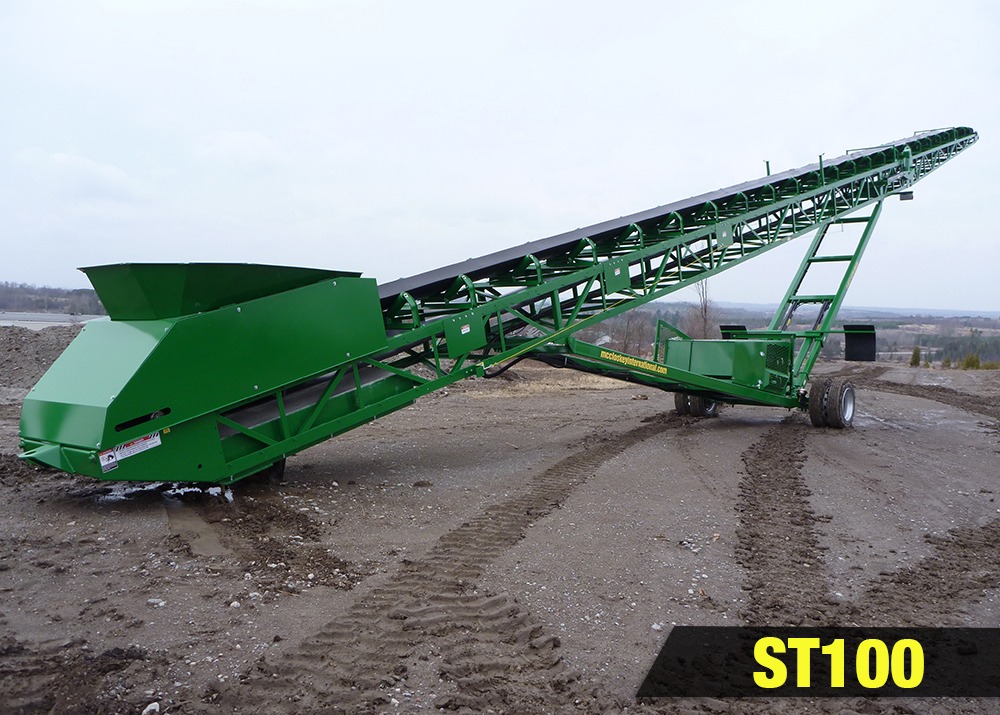

ST100 Wheeled
With a speedy set up time and high degree of mobility, the McCloskey ST100 stackers are exceedingly efficient due to minimal downtime and maximum throughput and stockpile capacity.

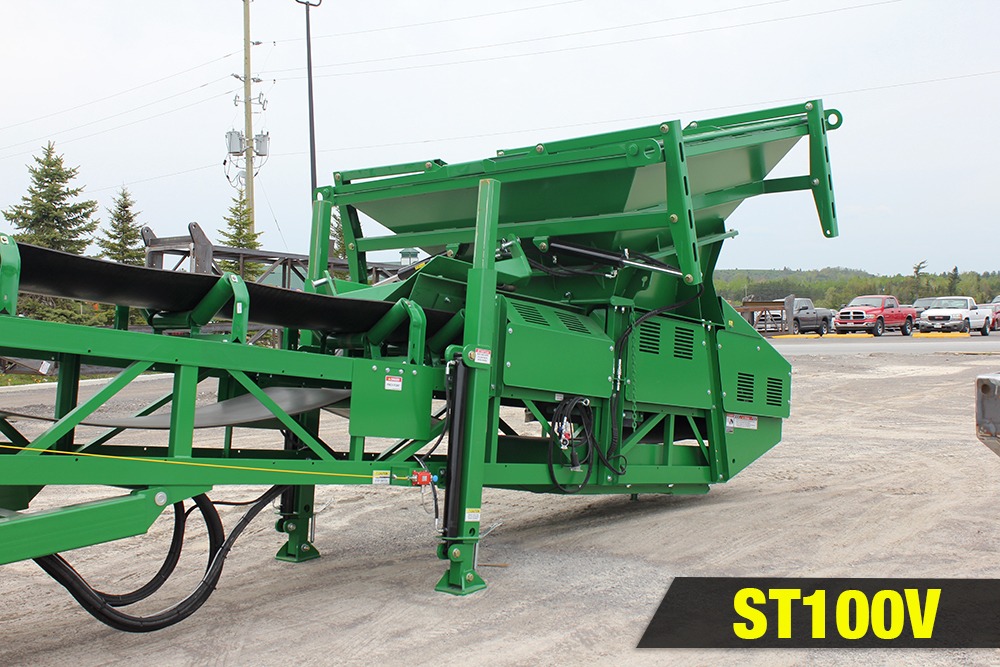

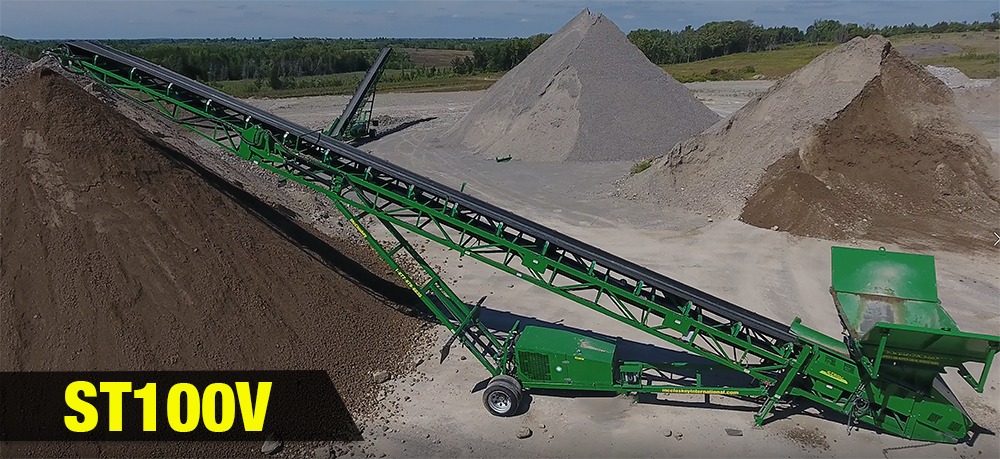

ST100V Wheeled V-Bin
The ST100V is a heavy duty mobile wheeled stockpiling conveyor with a high capacity V-Bin feed hopper for maximum material volume and production.
With a speedy set up time and high degree of mobility, the McCloskey ST100 stackers are exceedingly efficient due to minimal downtime and maximum throughput and stockpile capacity.
ST100V Wheeled V-Bin
The ST100V is a heavy duty mobile wheeled stockpiling conveyor with a high capacity V-Bin feed hopper for maximum material volume and production.
Features
Electric model available
900mm (36") x 30.48m (100') Main Conveyor Belt
Straightforward hydraulic controls to fold and unfold, raise and lower the conveyor.
Pivoting axle box allows for creating swept radius stockpiles.
Higher capacity over 7yds³ V-Bin hopper allows for larger amounts of material to be directly loaded into the hopper with a loader or excavator.
Specifications
| Engine* | 55kW (74Hp) |
| Transport Height | 12.5m (41' 3') |
| Transport Length | 21.19m (69' 6") |
| Transport Width | 3.32m (10' 11") |
| Weight | 11,300kg (25,000 lbs) |
| Stockpile Height |
12.5m (41' 3")
|
| Stockpile Capacity | 3350m³ (4375yd³) |
*Engine options vary. Consult your local dealer.
| Engine* | 74.5kW (100Hp) |
| Transport Height | 4.11m (13' 6") |
| Transport Length | 21.2m (69' 7") |
| Transport Width |
3.32m (10' 11")
|
| Weight | 11,750kg (26,000 lbs) |
| Stockpile Height | 12.5m (41' 3") |
| Stockpile Capacity | 3350m³ (4375yd³) |
*Engine options vary. Consult your local dealer.
