ST100T TRACKED STACKERS
The McCloskey ST100T tracked stackers have been designed for high capacity stockpiling operations. All units come as standard with diesel or Dual Power units, hydraulic main lift and hydraulic top fold. The Dual Power model boosts your operational fuel efficiency, reducing costs, and along with full electric models are perfect where environmental, legislative, or noise constraints are a consideration.
This heavy duty mobile stacker has a setback axle and 22.5 degree max conveyor angle allowing for the highest stockpiles per conveyor length in the industry. With its durable truss frame, large feed hopper and production capacity up to 500 TPH, the McCloskey ST100T stacks up well above the competition.

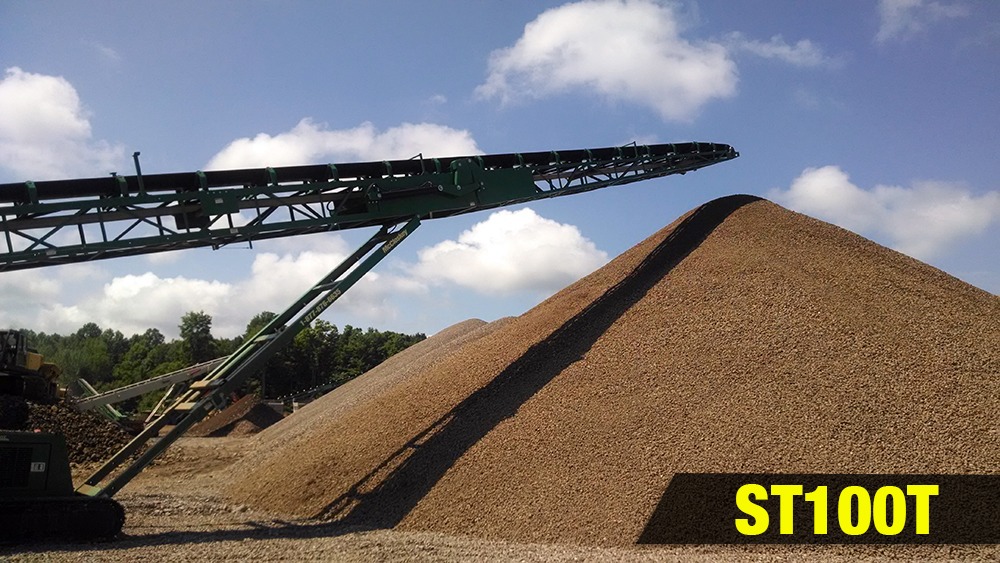

ST100T Tracked Stacker
The ST100T features high mobility, a stockpile height of 12.5m (41′ – 3″) and boasts production up to 800 TPH.

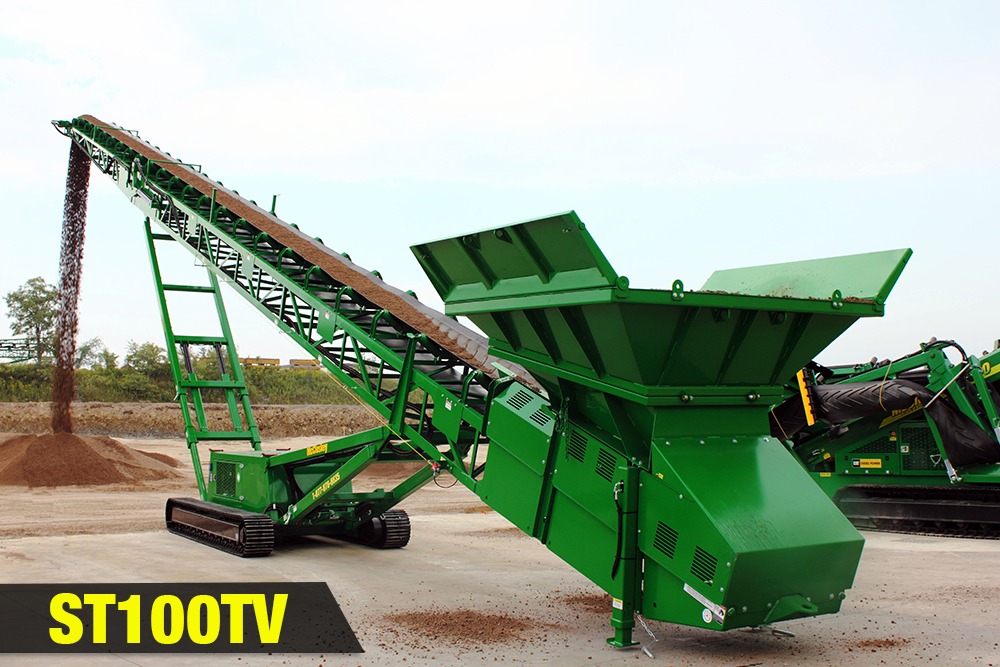

ST100TV Tracked V-Bin
Heavy duty mobile tracked stockpiling conveyor with Hydraulic folding frame and upper V-Bin for maximum volume and production.

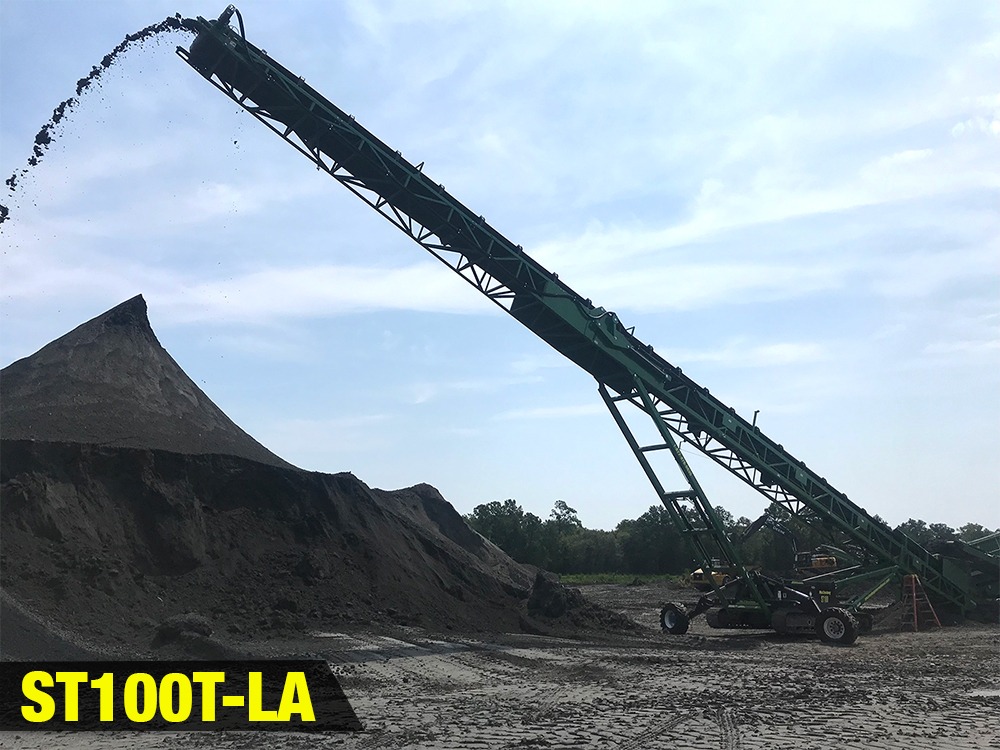

ST100T-LA Tracked with Lift-Axle
The groundbreaking all-terrain stackers blend the benefits of onsite track mobility with the high productivity of a radial conveyor, with a lift axle to allow the stacker to switch from track to radial in seconds.
The ST100T features high mobility, a stockpile height of 12.5m (41′ – 3″) and boasts production up to 800 TPH.
ST100TV Tracked V-Bin
Heavy duty mobile tracked stockpiling conveyor with Hydraulic folding frame and upper V-Bin for maximum volume and production.

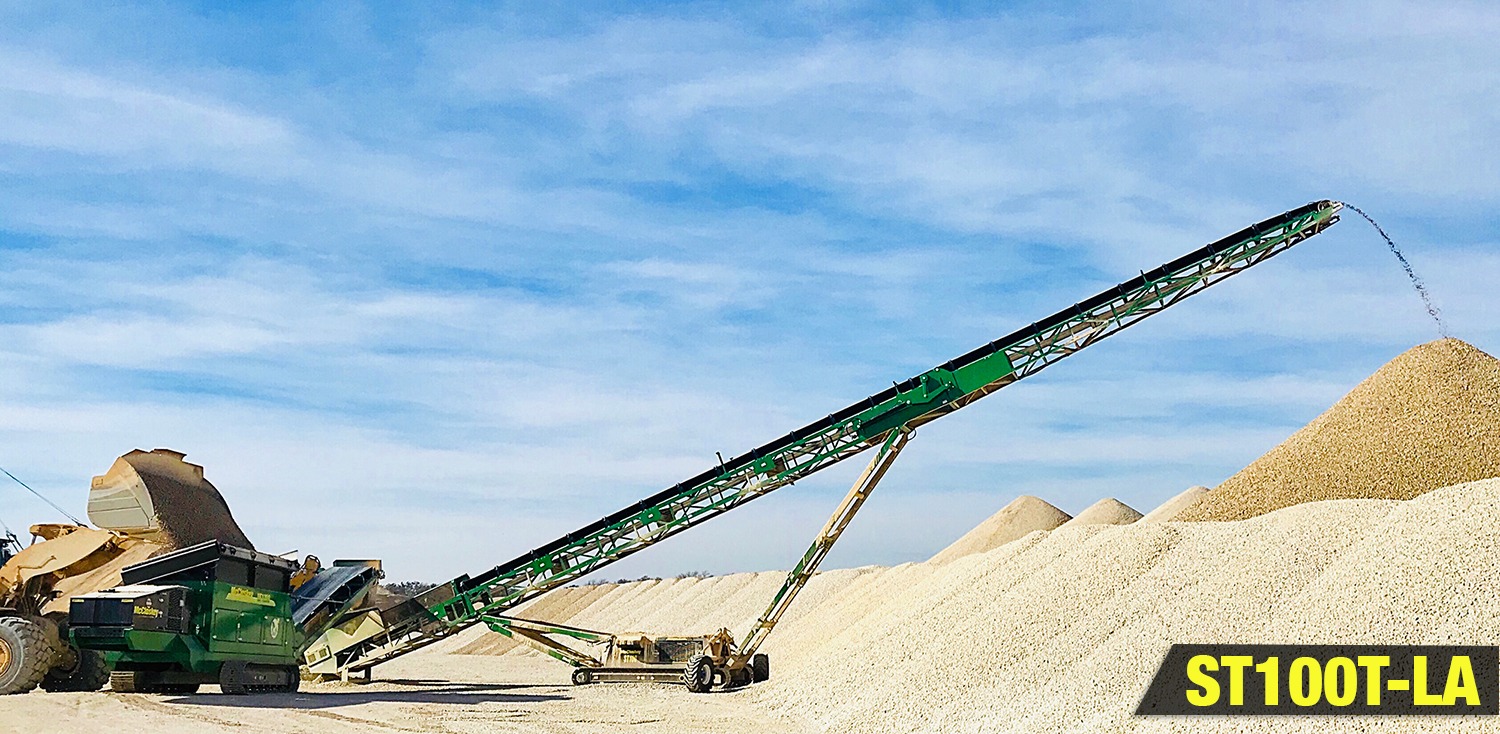

ST100T-LA Tracked with Lift-Axle
The groundbreaking all-terrain stackers blend the benefits of onsite track mobility with the high productivity of a radial conveyor, with a lift axle to allow the stacker to switch from track to radial in seconds.
Features
Dual Power available
On-site Track Mobility
Radial options available (LA Lift Axle)
900mm (36”) x 100’ Heavy-Duty Main Conveyor Belt
Hydraulic top fold
Straightforward hydraulic controls to fold and unfold, raise and lower the conveyor.
Fast on-site setup time (5 minutes)
Specifications
| Engine* | 55 kW (74Hp) |
| Transport Height | 3.44m (11’ 4”) |
| Transport Length | 21.25m (69’ 8.5”) |
| Transport Width | 2.84m (9' 4") |
| Weight | 16,000 kg (35,000 lbs) |
| Stockpile Height |
12.4m (40’ 7”)
|
| Stockpile Capacity | 3490m³ (4565 yd³) |
*Engine options vary. Consult your local dealer.
| Engine* | 74.5kW (100Hp) |
| Transport Height | 3.60m (11’ 10”) |
| Transport Length | 21.48m (70’ 6”) |
| Transport Width |
3.17m (10' 5")
|
| Weight | 14,750kg (32 500 lbs) |
| Stockpile Height | 12.4m (40’ 7”) |
| Stockpile Capacity | 3490m³ (4565 yd³) |
*Engine options vary. Consult your local dealer.
| Engine* |
55kW (74Hp)
|
| Transport Height | 3.44m (11’ 4”) |
| Transport Length | 21.25m (69’ 8.5”) |
| Transport Width |
2.84m (9' 4")
|
| Weight | 16,000 kg (35,000 lbs) |
| Stockpile Height | 12.4m (40’ 7”) |
| Stockpile Capacity | 3490m³ (4565 yd³) |
*Engine options vary. Consult your local dealer.
