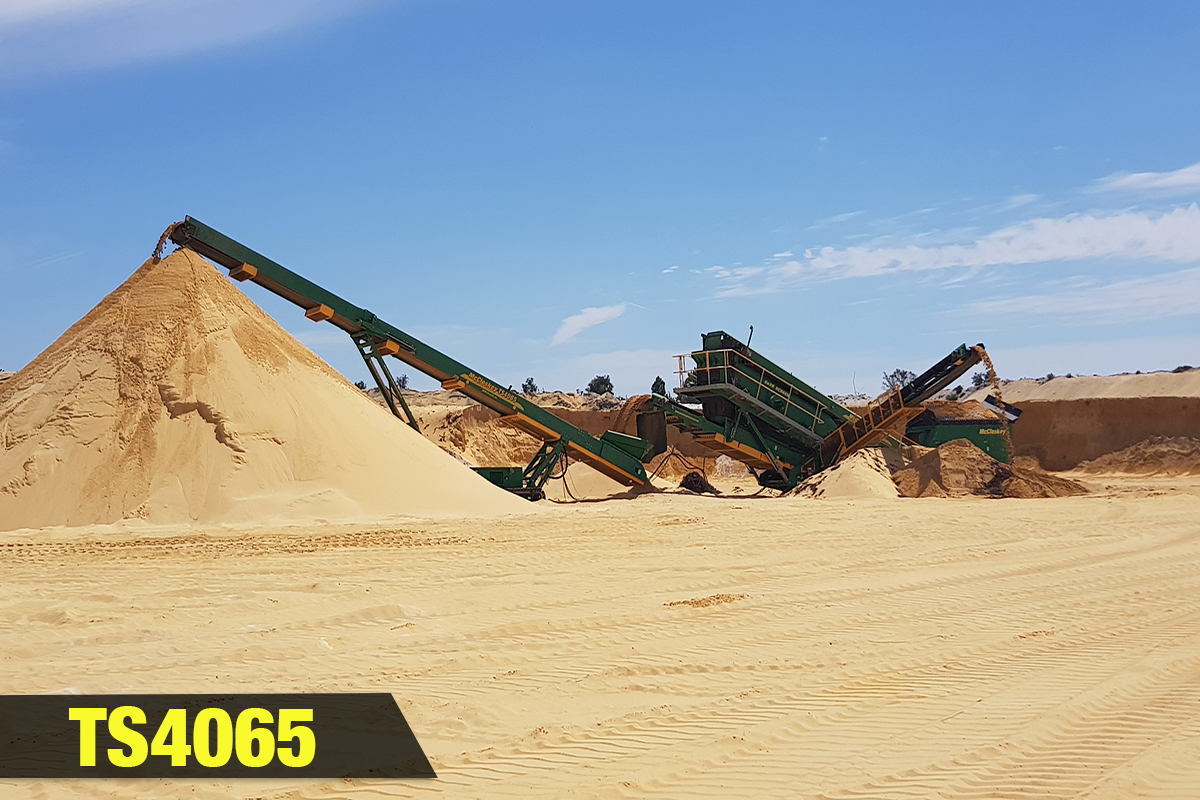

TS4065 TRACKED STACKER
The McCloskey TS4065 sets the standard for high capacity, high mobility stackers. Available in standard or Dual Power, the TS4065 comes with an impressive array of features, including a large hopper, full-length guarding, an easily accessible engine bay, an impact section under the feeder and an adjustable feed height.

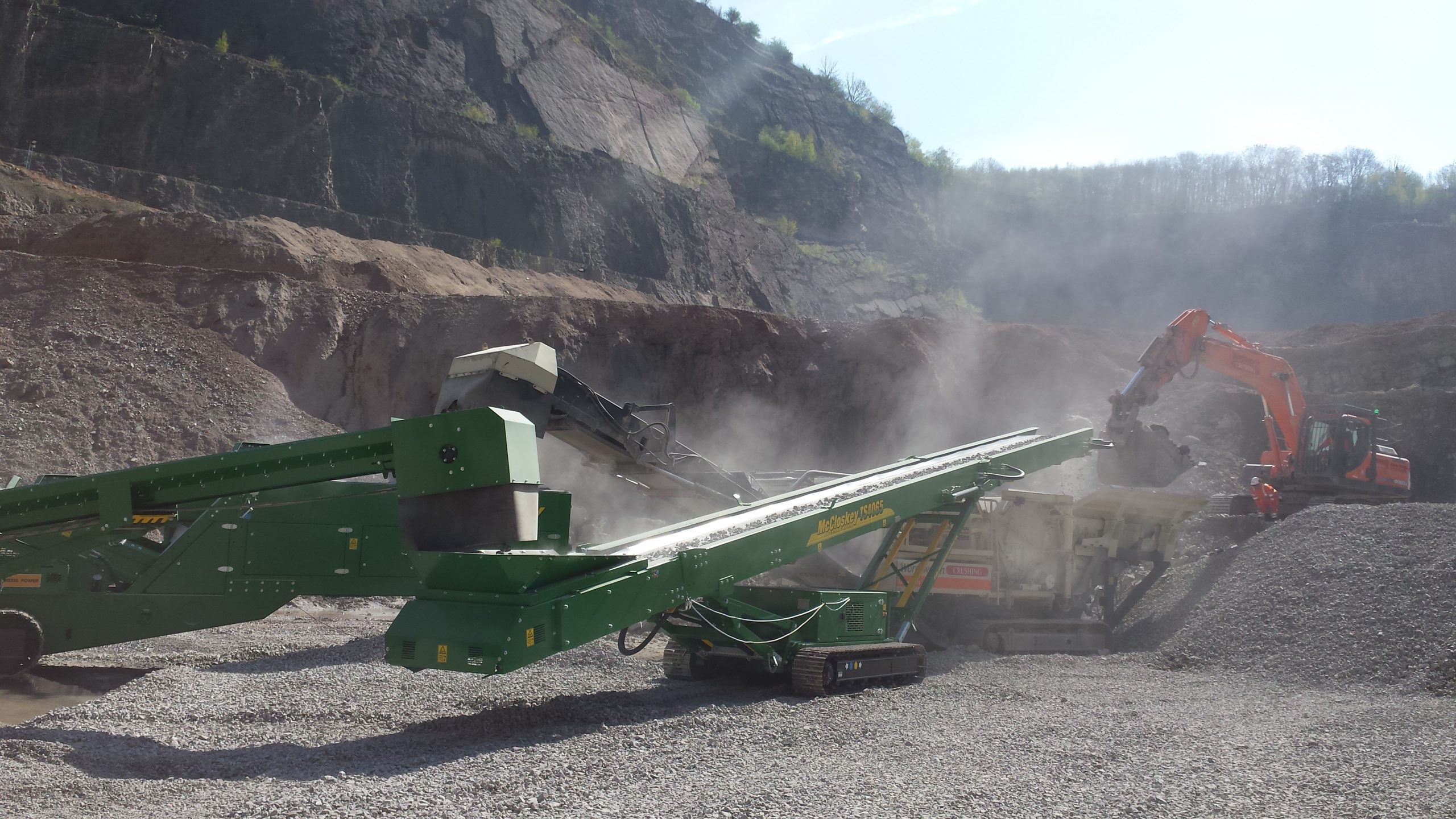

Designed to allow operators to stockpile/transfer material directly from mobile crushing and screening plants, this stacker offers the perfect solution to all your material handling needs. It offers the flexibility and mobility needed to ensure that the stockpiling process is as fast and efficient as possible, and eliminates double handling of materials. The unit can also be containerized for transport, with minimal setup time, substantially reducing transport costs. When the TS4065 arrives at a job site, it takes only a few minutes to set up and get to work.
At 65’ long, the TS4065 is the entry point for McCloskey tracked stackers, which are also available in 80’, 100’ and custom lengths.
At 65’ long, the TS4065 is the entry point for McCloskey tracked stackers, which are also available in 80’, 100’ and custom lengths.
Features
Dual Power available
1000mm (40") x 19.81m (65' ) Main Conveyor Belt
Large hopper delivers high volume capabilities.
Heavy Duty Impact Bed
Hydraulically adjustable discharge height up to 8.4 meters
Hydraulically adjustable feed in height
For maximum mobility, tracks allow the stacker to be easily moved on its own.
Fast on-site setup time (5 minutes)
Specifications
| Engine* | 36.5kW (49Hp) |
| Transport Height |
3.04m (9' 11") |
| Transport Length |
11.99m (39' 4") |
| Transport Width |
2.49m (8' 2") |
| Weight |
4,100 Kg (9,020 lbs) |
| Stockpile Height** |
6.365m (20' 11") |
| Stockpile Capacity*** |
384m³ (502 yds³) |
**Stockpile Height @ 22 degrees
***Stockpile Capacity @ 22 degrees
