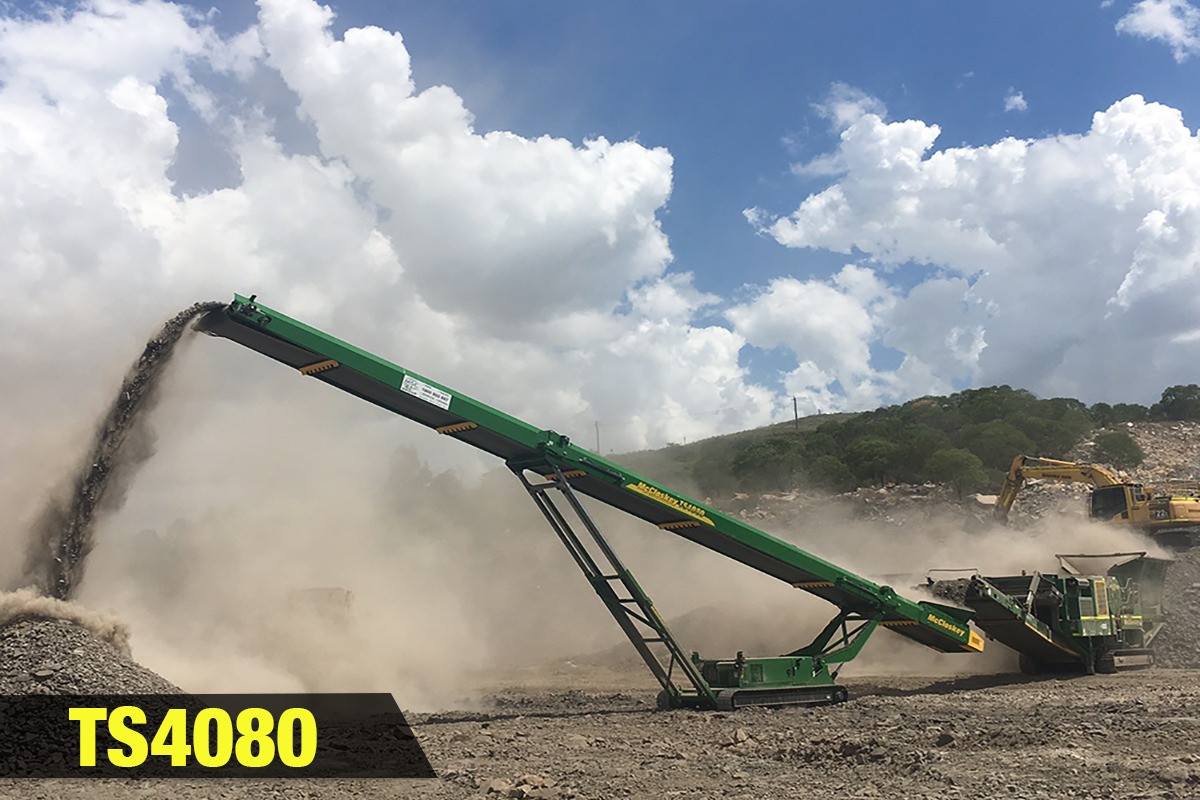

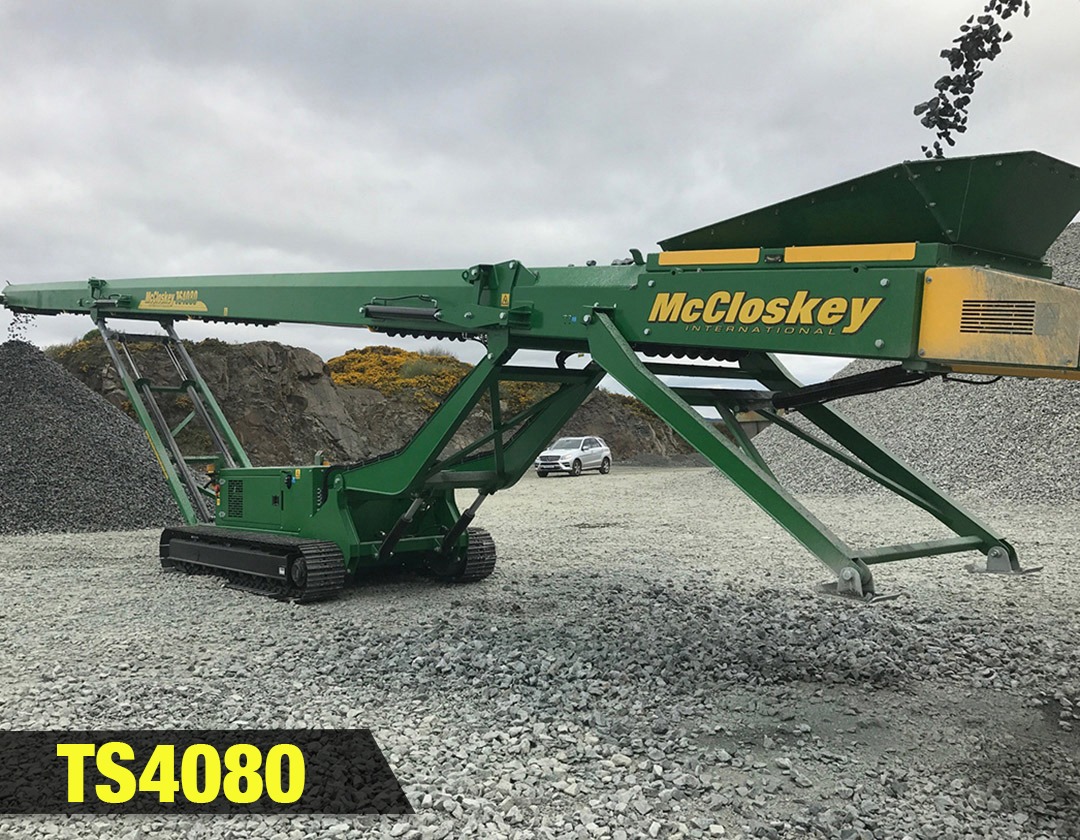

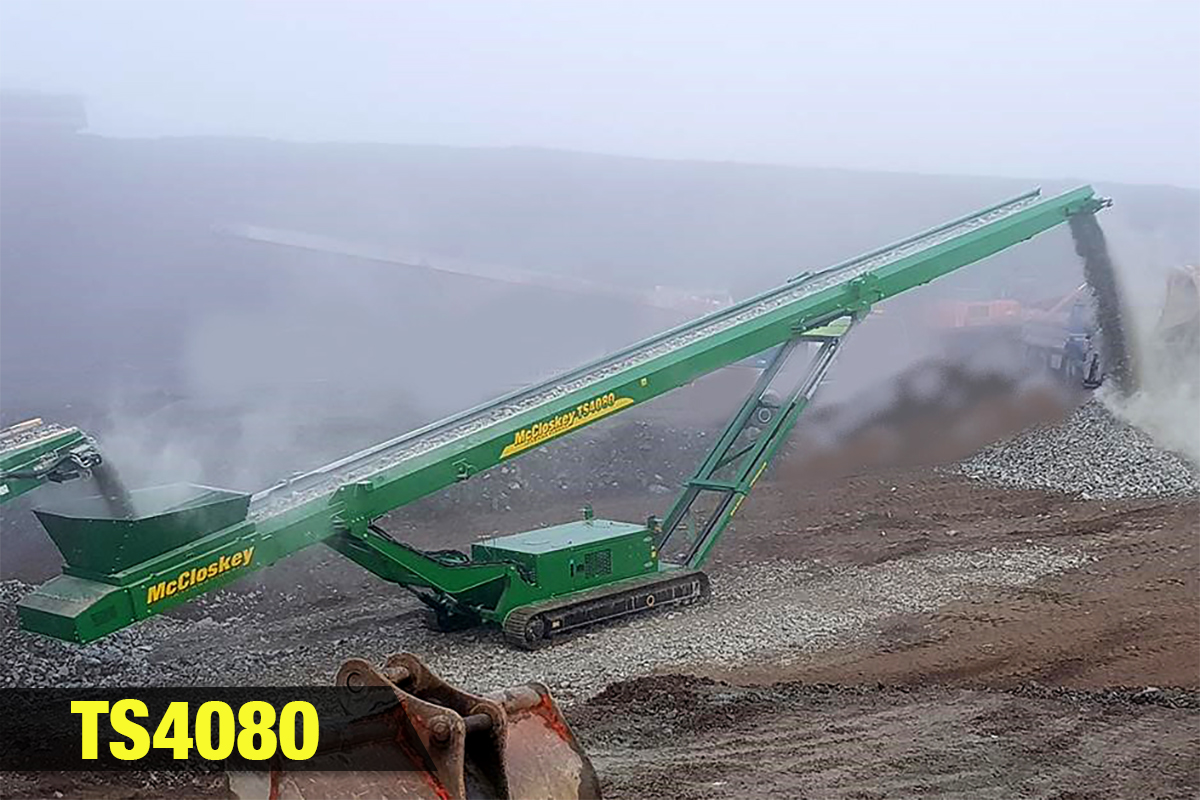

TS4080 TRACKED STACKER
The TS4080 tracked stacker is designed to allow operators to stockpile/transfer material directly from mobile crushing and screening plants, and is available in both standard and Dual Power models.
The Dual Power TS4080 boosts your operational fuel efficiency, reducing costs, and along with full electric models are perfect where environmental, legislative, or noise constraints are a consideration.
The TS4080 brings the flexibility and mobility needed to ensure that stockpiling is as fast and efficient as possible, and eliminates the use of a loader and double handling of materials.
The stacker can also be containerized for transport, with minimal setup time, substantially reducing transport costs.
The stacker can also be containerized for transport, with minimal setup time, substantially reducing transport costs.
Features
Dual Power available
1000mm (40") x 24.38m (80' ) Main Conveyor
Hydraulically adjustable discharge height up to 11 meters
Hydraulically adjustable feed in height
Full-length flashing minimizes nip points, increasing safety.
4 meter tracks deliver superior maneuverability and stability.
Fast on-site setup time (5 minutes)
Specifications
| Engine* | 36.5 kW (49 HP) |
| Transport Height |
2.6m (8' 6") |
| Transport Length |
11.7m (38' 8") |
| Transport Width |
2.34m (7' 8") |
| Weight |
12,700 Kg (27,998 lbs) |
| Stockpile Height |
8.89m (29' 2") |
| Stockpile Capacity |
1300m³ (1700 yds³) |
