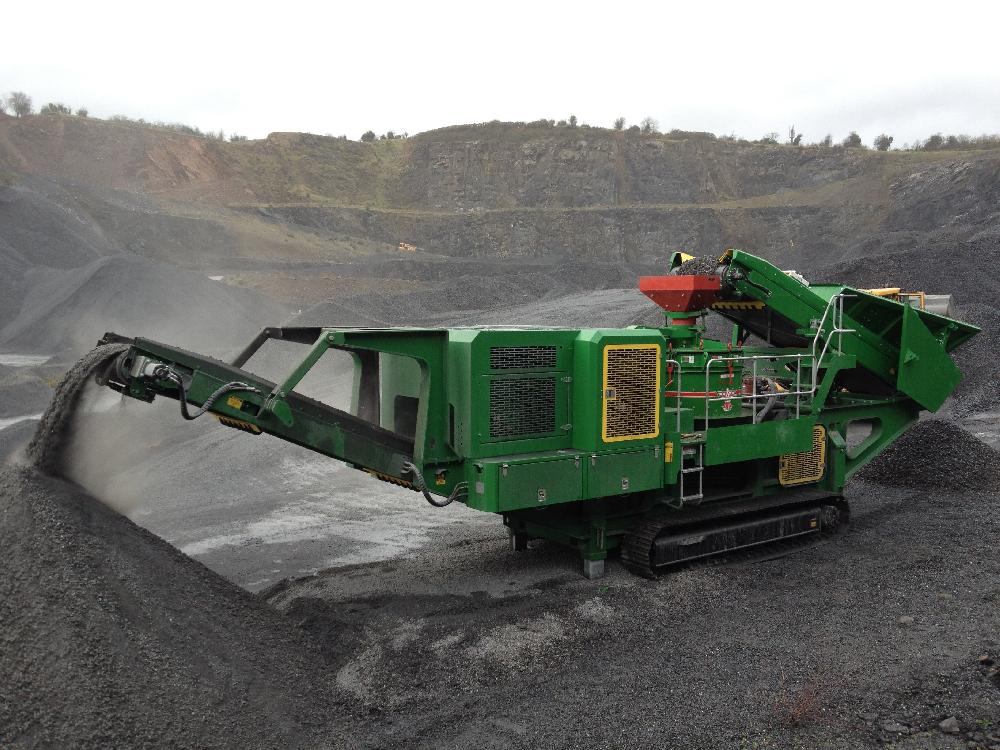

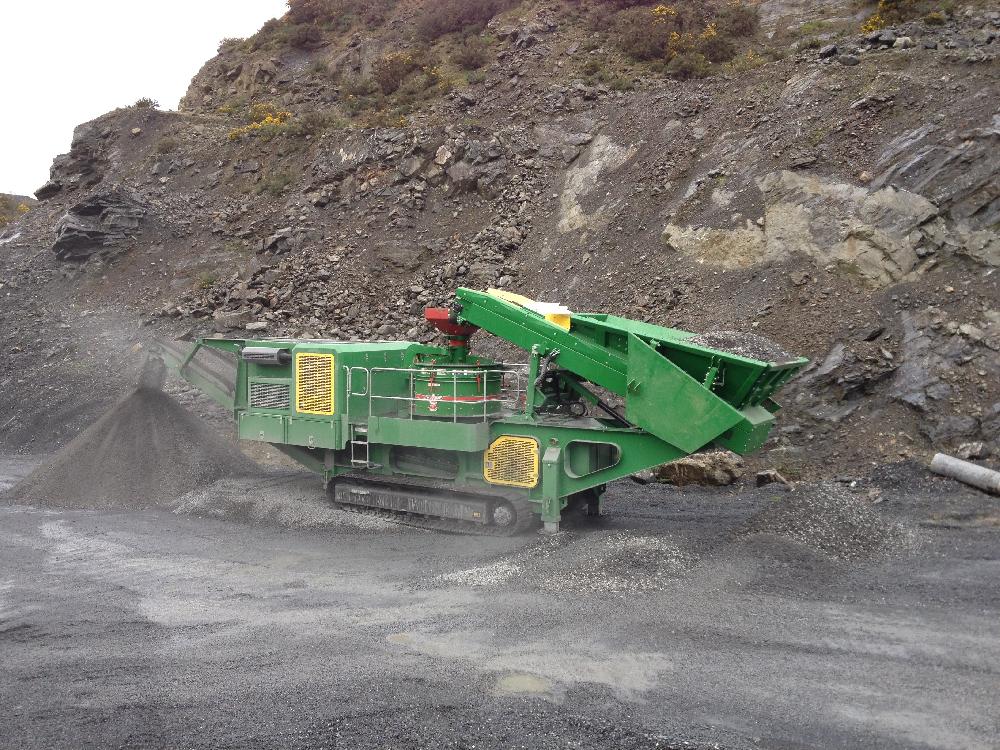

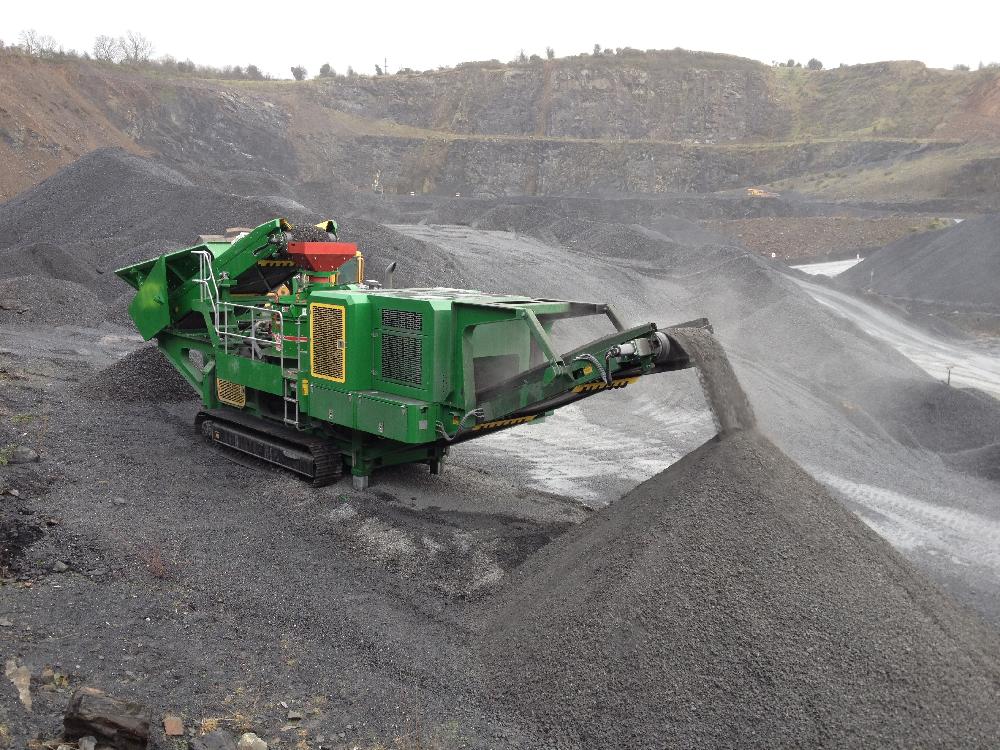

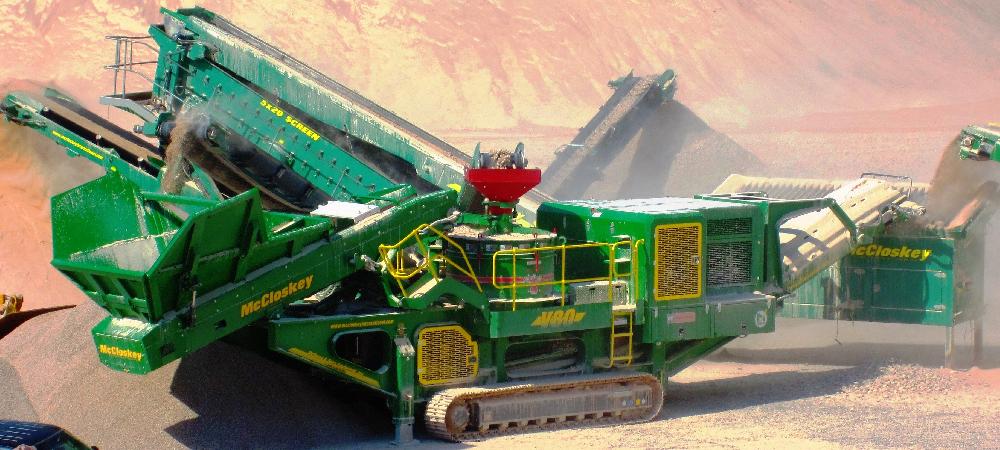

V80 VSI CRUSHER

The McCloskey V80 has been designed to be one of the most efficient vertical shaft impactors (VSI) on the market and excels at producing high specification sealing aggregates, a high proportion of fines required for main roads/road-base, or manufactured sand.
This heavy duty track-mounted Vertical Shaft Impactor has been designed with a host of user friendly features and several rotor/rockbox/anvil options that are suited to all applications. Built to the industry leading standard of all McCloskey equipment, the V80 uses high-quality branded components and a Cemco Turbo T-80 VSI crusher.

Features

Adjustable feed hopper
Metal detector automatically stops feeder upon detection
Lower costs and simple maintenance
Rotor, rockbox and anvil options available
Folding Hardox® hopper
Cemco Turbo T-80 crusher

Specifications

Engine 440 HP (320 kW) Diesel
Crusher
Cemco Turbo T-80 VSI
Crusher Speed
800 - 1800 rpm
Feeder Opening Width
800mm (31.5")
Feeder Drum Crs.
6000mm (19'-8.2")
Feeder Belt Width
1050mm (42")
Hopper Volume
5m³ (6.5yd³)
Stockpile Height - Main Conveyor
3250mm (10'-8")
*Tier 4. Tier 3 available for LRC only.
