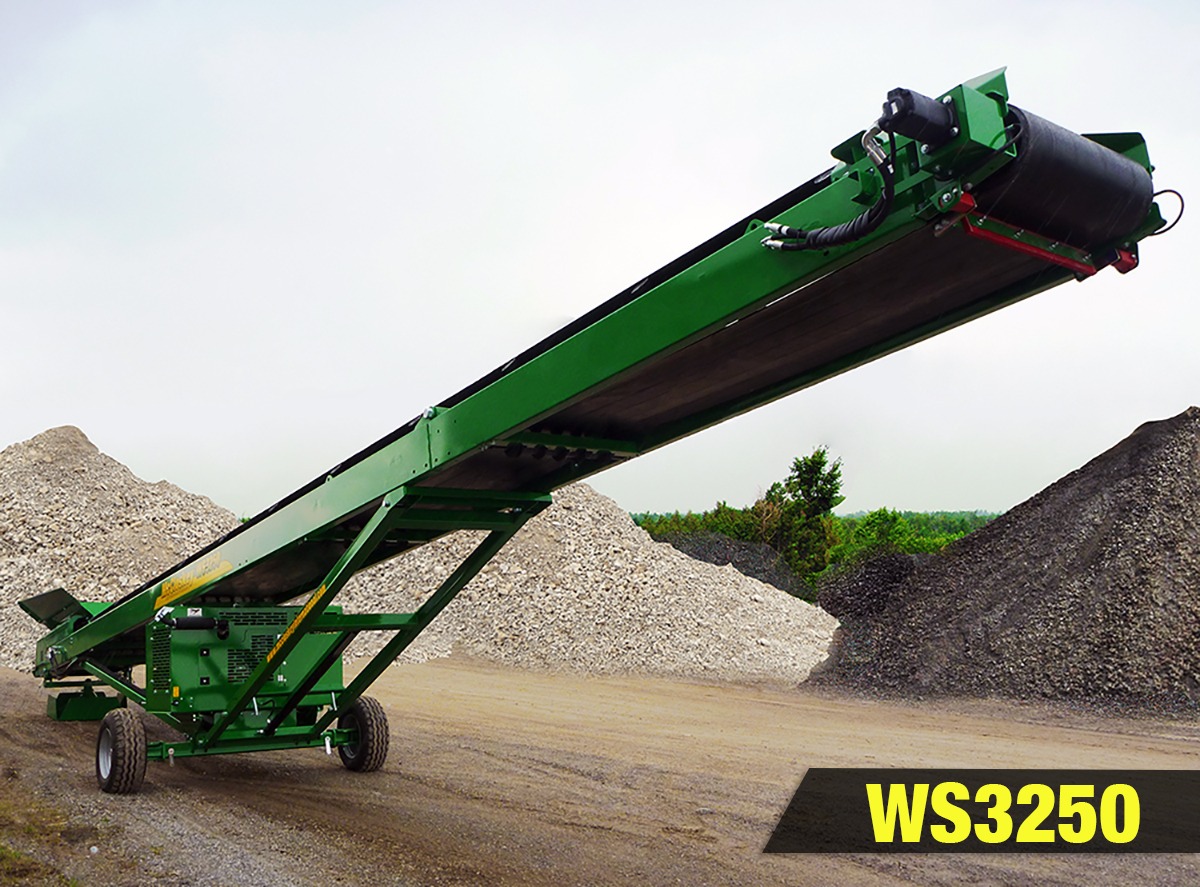

WS3250 WHEELED STACKER
The McCloskey WS3250 is a light duty mobile stockpiling conveyor that has been designed for high capacity stockpiling operations. The WS3250 electric model is perfect where environmental, legislative, or noise constraints are considerations.
The conveyor is perfect for both material stockpiling or material transfer between machines. Four of the units can be transported in a 40ft, high cube, open top container, which as a result substantially reduces transport costs.
The WS3250 wheeled stackers are also available diesel*, electric or close-coupled.
*Not available in Tier 4 Stage V power
The WS3250 wheeled stackers are also available diesel*, electric or close-coupled.
*Not available in Tier 4 Stage V power
Features
Electric model available
800mm (32”) x 50’ heavy duty main conveyor belt
On-site wheel mobility

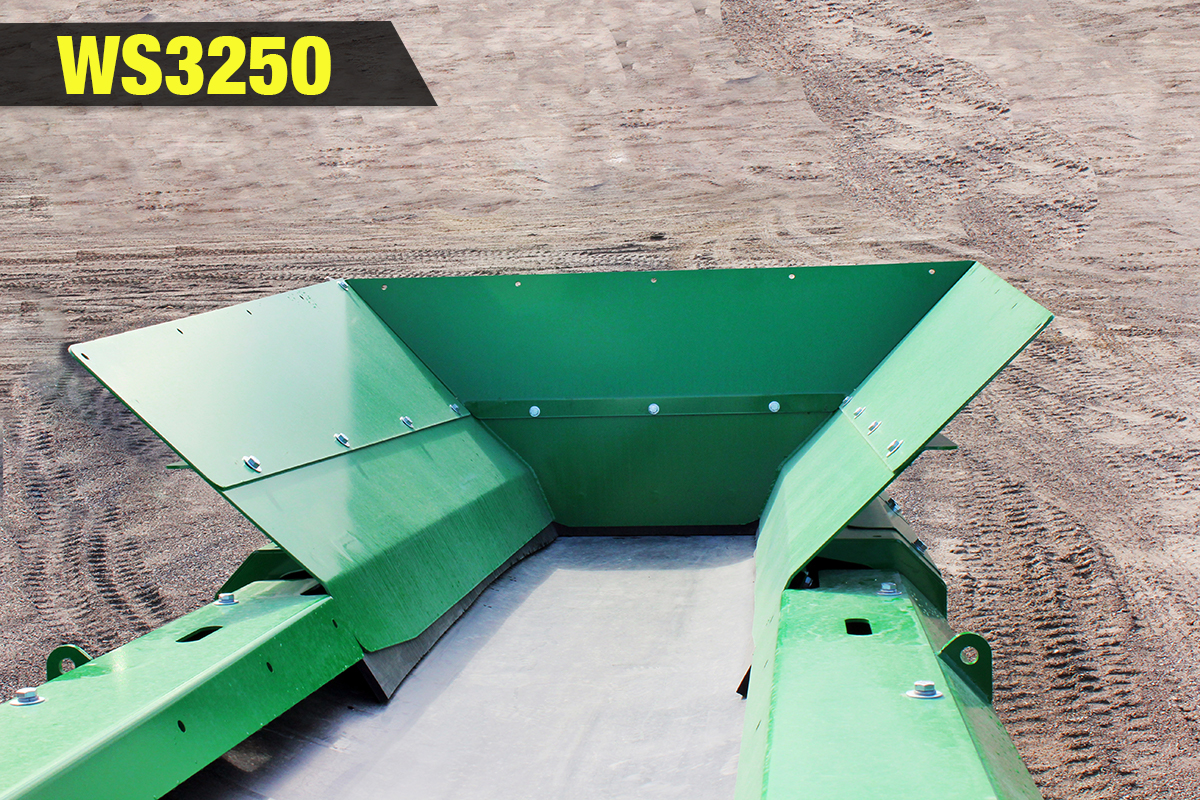

Large feed hopper
Adjustable feed hopper height to minimize impact
Fast on-site setup time (5 minutes)
Specifications
| Engine* | 36.5kW (49Hp) |
| Transport Height |
3.04m (9' 11") |
| Transport Length |
11.99m (39' 4") |
| Transport Width |
2.49m (8' 2") |
| Weight |
4,100 Kg (9,020 lbs) |
| Stockpile Height** |
6.365m (20' 11") |
| Stockpile Capacity*** |
384m³ (502 yds³) |
**Stockpile Height @ 22 degrees
***Stockpile Capacity @ 22 degrees
